NOTE: Housing Only - No Intensifier Tubes Or Optics Included (Product photo is for demonstration purposes only and does not represent all included contents.)
Lead Time: This is a special made-to-order item. Lead time is 6-8 weeks after purchasing.
Description:

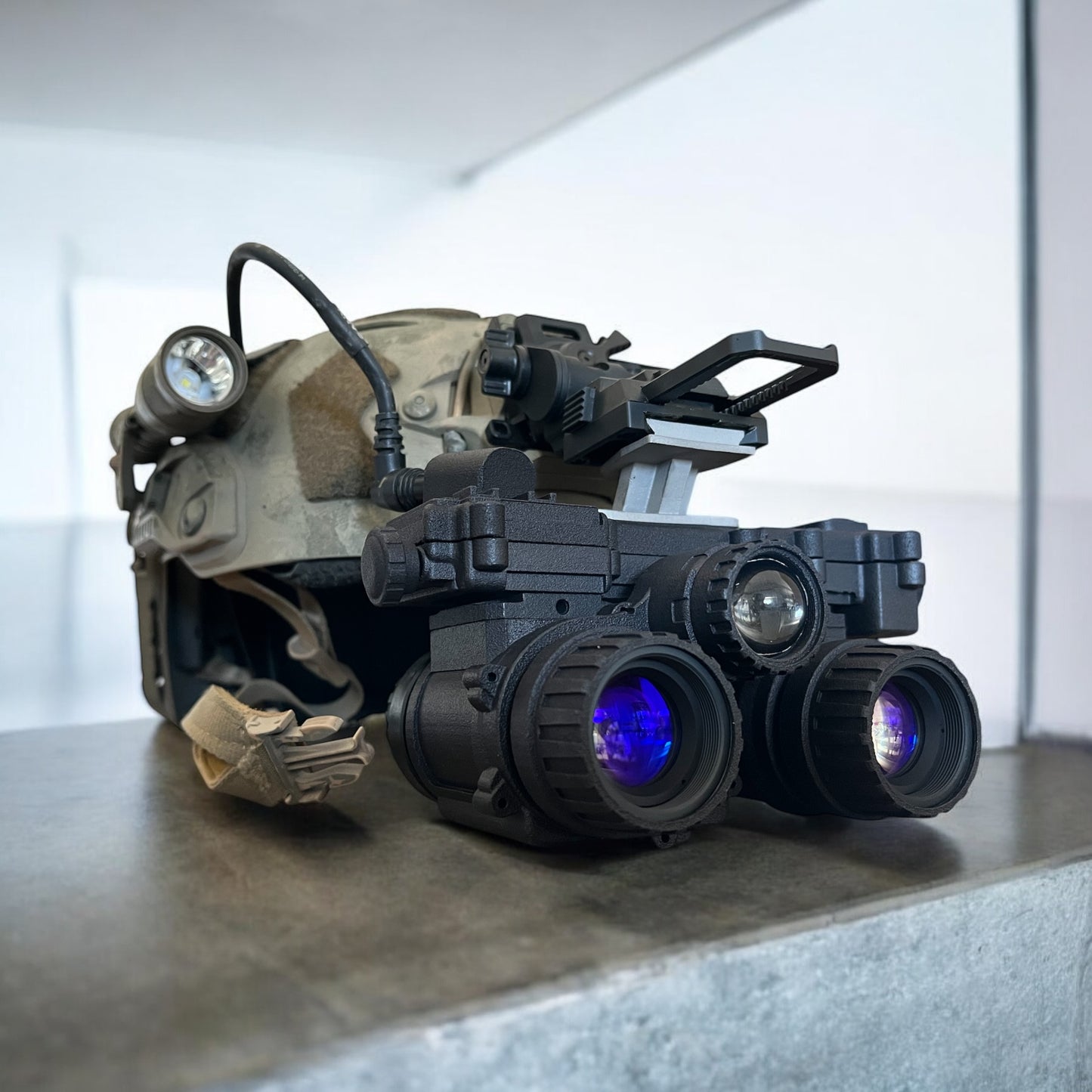

Introducing the Limited Edition Run of the Nocturnal Optics PSQ-37B Night Vision Housing from the "Legacy Series" collection, intended for use by Veteran Night Vision Users, Collectors and Mil-Sim Enthusiasts as a fully functional clone device.
This replica housing features proprietary Electronics and a Custom Design that closely replicates the AN/PSQ-36 Fusion Goggle Enhanced (FGE), which provided US Special Operations Tier-1 units and OGA personnel with a fused thermal and night vision capability in a single integrated helmet-mounted system.
The Nocturnal Optics PSQ-37B is crafted in a variety of materials, including MJF PA12 Nylon and SLM Stainless Steel, which are materials known for their robustness and resilience.
Finally, the housing is specially coated and post-processed to offer enhanced protection against shock, UV rays, chemicals, and water. This ensures that the binocular can withstand demanding conditions, making it suitable for use in various challenging environments.
The Nocturnal Optics PSQ-37B is compatible with standard PVS-14 Optics Assemblies for ease of custom building.
Note: The current rendition of this device does not feature functional thermal imaging/ fusion capability and is intended as a Night Vision-only clone system.
Specifications:
Material | Post-Processed MJF-printed Nylon PA12 and SLM Stainless Steel 316L |
Tube Type | 18mm MX-10160 Image Intensifier Tubes (2 and 3-Pin Pad) |
Colour |
Black, Flat Dark Earth |
Weight |
680g with tubes/standard optics |
Power Supply | External battery pack via Fischer port |
Runtime | 16+ hours |
Lenses | Compatible with Standard/ Mil-Spec (Noctis/Fujinon/QiOptic) PVS-14 Optics |
Field of View | 40º |
Interpupillary Adjustment Range | 51-73mm |
Diopter | Adjustable +2 to -6 |
Submersion and Dust Rating | Not Yet Tested |
Mount Style | Wilcox QD-style dovetail mount / Ball Detent Mount (TBA) |
Manual Gain Control | Yes |
Onboard IR Illuminator | No |
Active Development Disclaimer:
Please note that the PSQ-37B Night Vision Housing Unit is still in active development and may undergo revisions and design changes. Therefore, the early access units may not completely reflect the final product. We value customer insights as they help us identify any potential faults or areas for improvement.
Kit Includes:
The standard PSQ-37B kit comes with these items listed:
- NOA/ PSQ-37B Housing Assembly - x1
- Bikini Lens Covers – x2 Sets (Retainers Included)
- Hard Carry Case - x1
- Tube Retaining Rings - x2
- PVS-14 D-Collar - x2
- PSQ-style Objective Lens Sleeves (Compatible with Standard PVS-14 Optics) - x2
- User Guide
- Warranty Sheet
