Low Light Innovations

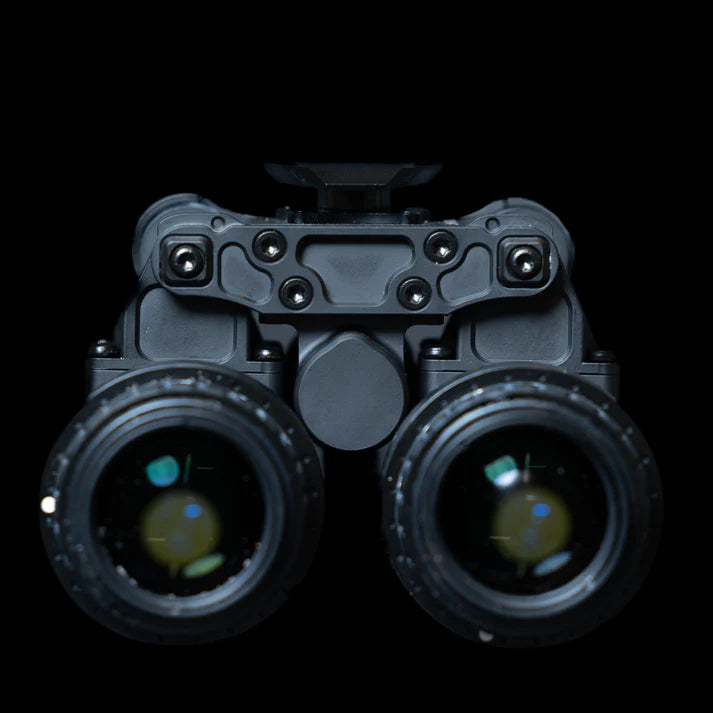

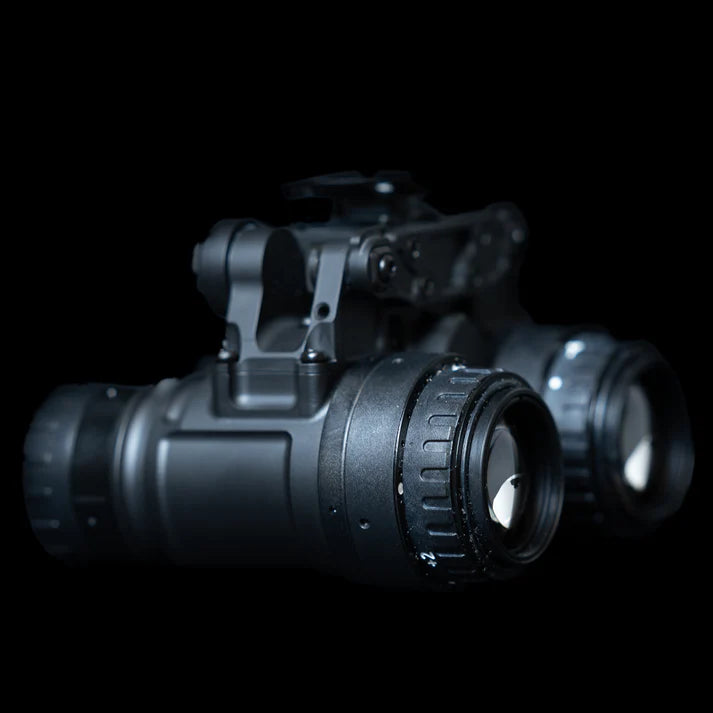

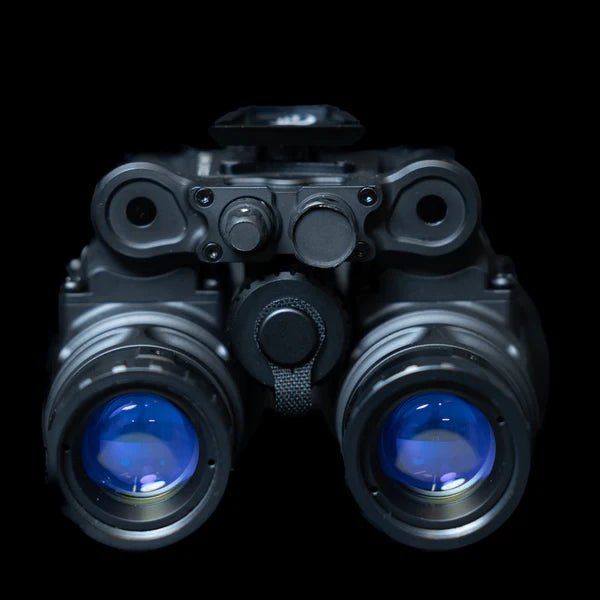

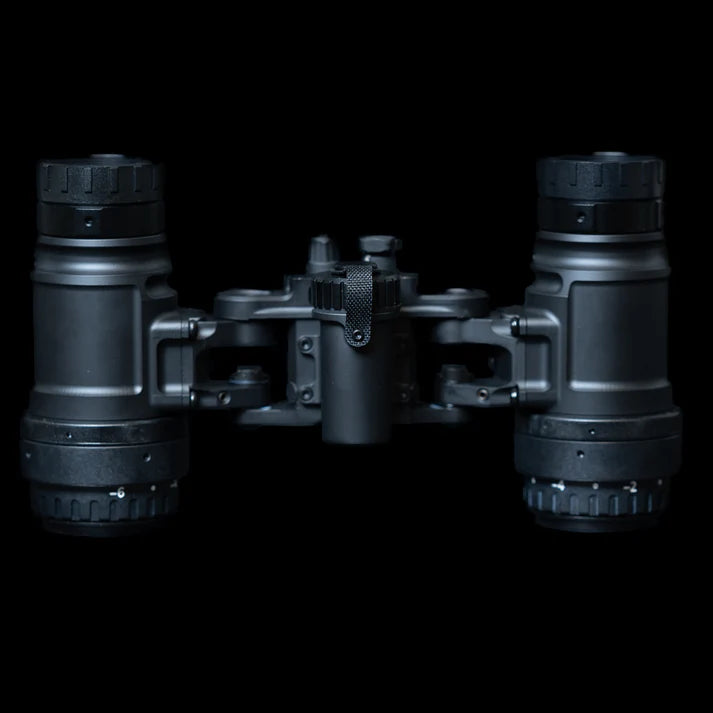

Low Light Innovations MH-1 Night Vision Binocular
Low Light Innovations MH-1 Night Vision Binocular
Couldn't load pickup availability
This product is regulated under Australian Government DEC (Defence Export Controls), but is able to be exported via Permit. View our FAQ/ Defence Exports Page for more information.
Lead Time: This is a special-order item. Lead time is 4-6 weeks after purchasing.
Description:
The MH-1 is the newest advancement in housing design from Low Light Innovations and the peak of their housing selection.
Constructed with aerospace-grade magnesium and titanium alloys, the MH-1 combines durability with a lightweight design, weighing only 15.3 ounces in its lightest form.
The MH-1 offers true modularity, allowing for quick and easy power supply exchanges between CR123A, AA, and other options.
Additionally, the device can be divided into two monoculars using the Modular Bridge System (MBS). What sets the MH-1 apart is its manual gain functionality, which can be easily achieved without soldering, preserving the warranty of your 11769 format tube.
Key Features:
- Rotational pod shutoff
- Manual gain control (4 pin plug-in)
- Dual power IR illumination
- IPD stops
- Modular pods (Ability to split into monos)
- Onboard power (Modular)
- External power (Modular
- Modular mounting platforms (Dovetail/Ball detent)
- Adjustable pod tension
Specifications:
- POWER SOURCE: MODULAR
- FOCUS RANGE: 9.8” TO INFINITY
- OPERATION TIME: APPROXIMATELY 25-90 HOURS
- MAGNIFICATION: (1X) ONE POWER
- FIELD OF VIEW: 40 DEGREES
- INTERPUPILLARY ADJUSTMENT: 51 TO 78MM
- DIOPTER ADJUSTMENT: -6 TO +2
- EYE RELIEF: 25MM
- WEIGHT: 434g
- WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS
- INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
Made in the USA based in part on components from overseas
Feature Overview:
Material | Magnesium Alloy |
Tube Type | 10160 3-Pin style auto-gain |
Intensifier Tube Options | Photonis ECHO, ECHO+, 4G |
Weight |
525g with standard optics and a battery |
Power Supply | CR123A onboard |
Runtime | 20+ hours |
Lenses | US Milspec or PVS-14 Standard |
Field of View | 40º |
Diopter | Adjustable +2 to -6 |
Submersion and Dust Rating | 66ft for 2 hours |
Mount Style | Built in Dovetail |
Onboard IR Illuminator | Yes, Dual Illuminator Setup |
Kit Includes:
- Low Light Innovations MH-1 Night Vision Binocular
- 2x Bikini Lens Covers (With Retainers)
- Tube Specification Sheets
Warranty Information:
