Nocturnal Optics

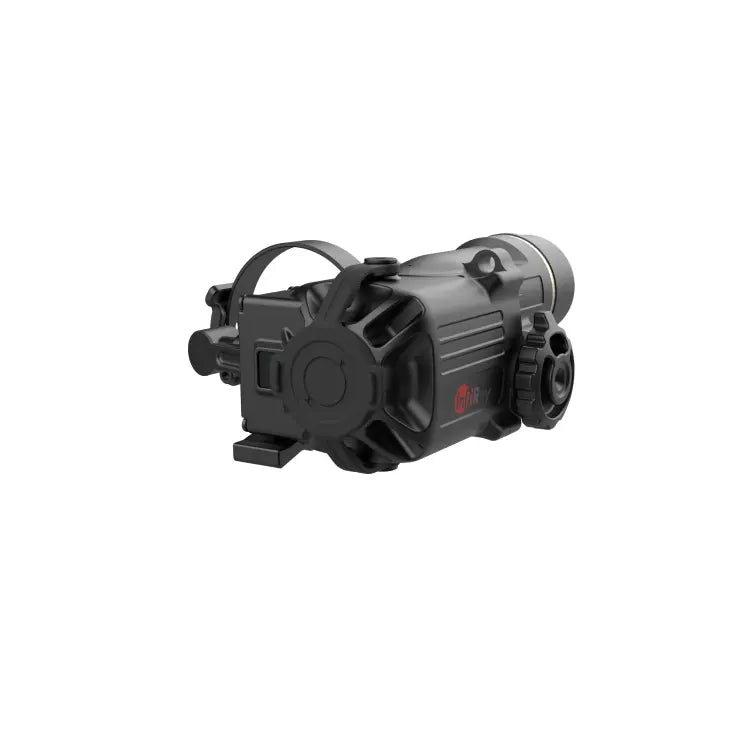

InfiRay Jerry C5 Clip-On-Thermal Imager (COTI)

InfiRay Jerry C5 Clip-On-Thermal Imager (COTI)

Regular price $4,995.75 AUD
Regular price Sale price $4,995.75 AUD
Sale Sold out

This product is regulated under Australian Government DEC (Defence Export Controls), but is able to be exported via Permit. View our FAQ/ Defence Exports Page for more information.

Lead Time: This is a special-order item. Lead time is 4-6 weeks after purchasing.


The InfiRay Jerry-C5 Clip On Thermal Imager System is a highly advanced thermal fusion optics device designed to enhance the thermal detection capability of night vision devices. With its cutting-edge technology and versatile features, this system offers superior environment sensing performance for a wide range of applications.

One of the key features of the Jerry-C5 Clip On Thermal Imager is its ability to provide thermal fusion capability to your night vision device, allowing for seamless integration and enhanced detection capabilities. By combining thermal and night vision technologies, users can benefit from a comprehensive and accurate understanding of their surroundings, even in low light or challenging conditions.

The system is equipped with a removable wide-angle HD lens, which enables a broader field of view and improves the overall sensing performance. This feature ensures that users can effectively monitor larger areas and capture more details with precision.

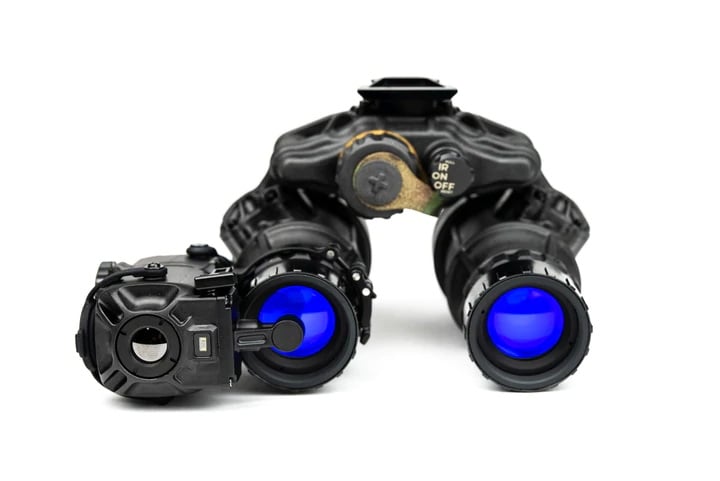

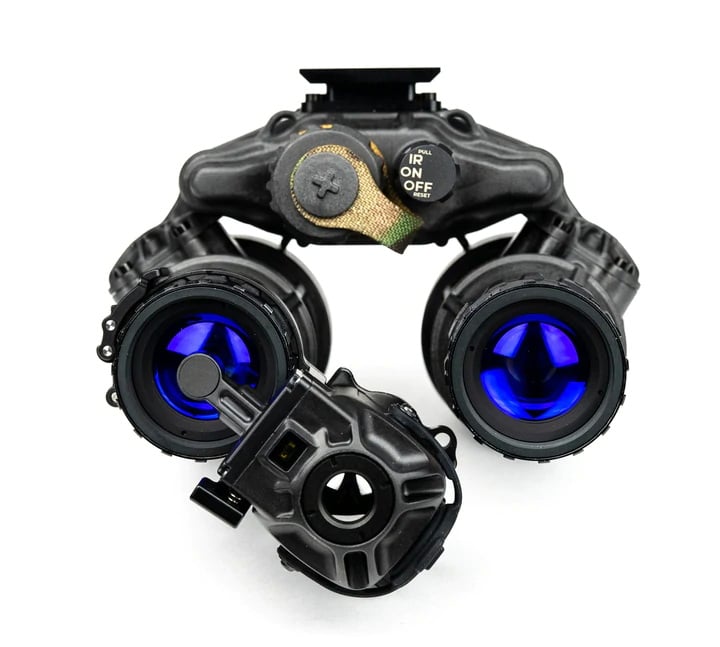

The InfiRay Jerry-C5 Clip On Thermal Imager System is designed as a monocular clip-on attachment, compatible with a variety of night vision devices such as helmet-mount binoculars. This versatility makes it easy to integrate into existing equipment setups, providing an instant upgrade to the thermal imaging capabilities of night vision devices.

Specifications



Detector 640 x 512 /12um
Lens f25mm
Human recognition 1088m
Vehicle recognition 1472 m
NETD ≤60mK
Frame rate N/A
FOV 30.5°
Objective Lens  -
Laser pointer No
Diopter compensation N/A
Optical zoom 1x
Electronic zoom N/A
Battery type 17335\18500\18650 flat top

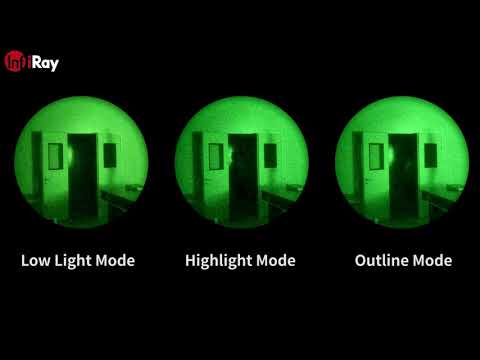

Display Supported modes: White hot/Highlight/Outline
Storage N/A
Recoil proof No
Mounting options Clip-on: NVD mounted
Weight 110 g
Dimensions 85 x 66 x 40mm
IP rating IP67
Operating temperature -40°C to + 60°C
Storge temperature -40°C to + 60°C



System Features:

  • Resolution: The Jerry-C5 features a high-resolution thermal sensor with a resolution of 640 x 512 pixels. This ensures crisp and clear thermal images, allowing for accurate analysis and detection.
  • Pixel Size: With a pixel size of μm, the Jerry-C5 captures fine details and delivers precise thermal information.
  • Frame Rate: The system offers a high frame rate of Hz, enabling smooth and real-time thermal imaging.
  • Field of View: It provides a wide field of view of 30.5 degrees, allowing you to capture a larger area in a single view.
  • Magnification: The Jerry-C5 supports adjustable magnification, allowing you to zoom in on specific targets and objects.
  • Detective Range: It has an impressive detective range of over 1000m, enabling long-range thermal detection and surveillance.
  • Waterproof: Built with an IP67 rating, the Jerry-C5 is waterproof, ensuring reliable performance even in challenging environmental conditions.

Other Features:

  • Clip-on functionality for easy attachment to optical devices
  • Wide temperature range detection (-40°C to 150°C)
  • Multiple imaging modes (White Hot, Black Hot, Color Palettes)
  • User-friendly interface for easy navigation and operation
  • Long battery life for extended usage
  • Durable and lightweight design for reliable performance in harsh conditions
  • Versatile mounting options for easy attachment and detachment
