This product is regulated under Australian Government DEC (Defence Export Controls), but is able to be exported via Permit. View our FAQ/ Defence Exports Page for more information.
NOTE: Argus A4 Light Weight Night Vision Mount (LWNVG) / Argus Universal Strobe Battery Pack (USBP) Accessories Are NOT Included.
Description:
The BNVD-1431 MK2 night vision binocular is an affordable articulating night vision solution featuring articulating pods with adjustable joint tension and interpupillary stops, a central power knob that doubles variable gain control, and the ability to be powered by a single AA battery or an external battery pack.
These devices are fully built units featuring North Night Vision Technology Generation 2+ P45 White Phosphor Intensifier Tubes in 1400+, 1600+ and 2000/2200+ Figure of Merit (FOM).
Key Features:
- On board accelerometer
- Manual gain control
- Articulating binocular system
- Adjustable interpupillary stops
- Powered by single AA Battery

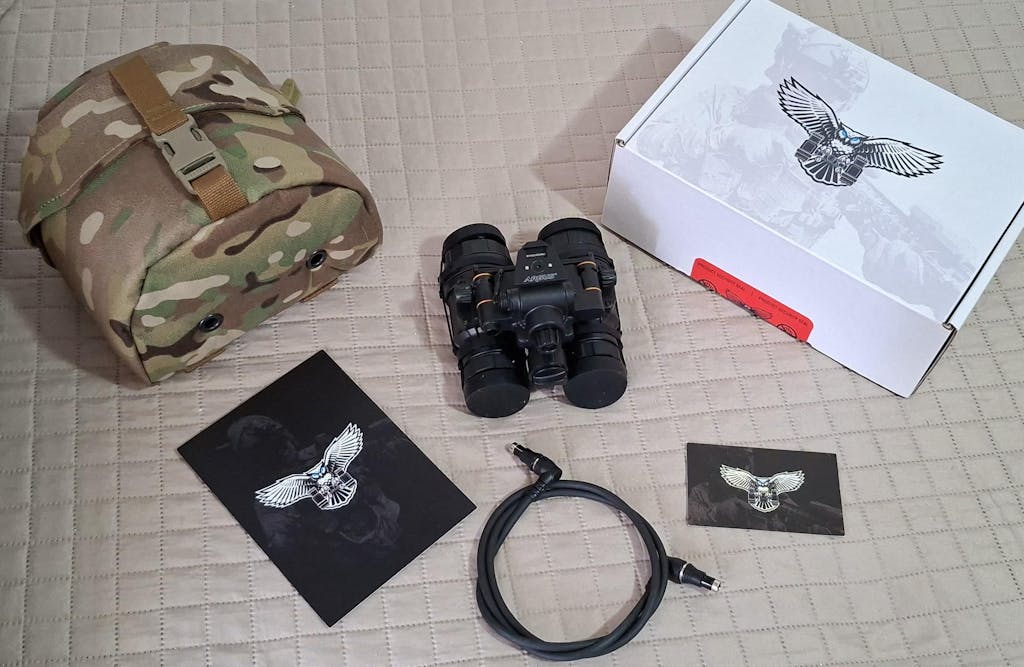

Kit Includes:
- Argus BNVD-1431MK2 Night Vision Binocular
- Night Combat Unity Pouch (NCUP)
- 2x Bikini Lens Covers (With Retainers)
- Tube Specification Sheets
Specifications:
-
Dimensions: 5.0′′(L) x 5.0′′(W) x 3.0′′(H)
-
Weight: 500g-580g
-
Color: Black
-
Tube options: NVT4 (1400+FOM), NVT5 (1600+FOM), NVT7 (2000+FOM)
-
FOV: 40° ± 2°
-
Magnification: 1.0x
-
Waterproof: IP68
-
Eyepiece Diameter: 26mm
-
Flipping angle of pods: 140°
-
Gain: Adjustable/Variable according to tube options
-
Mount standard: Standard Wilcox QD dovetail, quick& easy removal
-
Environmental durability: Working temperature: -40°C ~60°C; Storage temperature: -55°C ~70°C
-
Power: One AA Battery, or external battery pack
-
Battery Life: >15 hours with single AA battery), or >50hours with a battery Pack (in common temperature)
North Night Vision Technology (NNVT) - Intensifier Tube Specifications:
IMPORTANT: The below specifications are the average performance charts listed by the manufacturer and do not accurately reflect the exact performance levels of individual tubes, slight variations of specs will present. All intensifiers will include its individual spec sheet.
Handpicking: If you require specific specifications, please add them into your order notes at checkout and we will request the manufacturer to handpick tubes that are as close to your requirements as possible.
NVT-7 (Class A):
-
FOM: 1800(Min) - 2000 (Max)
-
SNR: 28
-
Resolution: 64 lp/mm
-
High Light Res: 54 lp/mm
-
Gain: 10000 - 20000
-
Phosphor: P43 (GP)/ P45 (WP)
-
Power Supply: Auto-gating + Variable Gain
-
Voltage: 2.2-3.4v
-
Weight: 80 grams
NVT-5 (Class B):
-
FOM: 1600 (Min) -1800 (Max)
-
SNR: 25
-
Resolution: 64 lp/mm
-
High Light Res: 54 lp/mm
-
Gain: 8000 - 12000
-
Phosphor: P43 (GP)/ P45 (WP)
-
Power Supply: Auto-gating + Variable Gain
-
Voltage: 2.2-3.4v
-
Weight: 80 grams
NVT-4 (Class C):
-
FOM: 1400 (Min) -1600 (Max)
-
SNR: 23
-
Resolution: 60 lp/mm
-
High Light Res: - lp/mm
-
Gain: 8000 - 12000
-
Phosphor: P43 (GP)/ P45 (WP)
-
Power Supply: Fixed Gain
-
Voltage: 2.2-3.4v
-
Weight: 80 grams
