Argus Panoramic Night Vision Goggle (APNVG)

This product is regulated under Australian Government DEC (Defence Export Controls), but is able to be exported via Permit. View our FAQ/ Defence Exports Page for more information.

Lead Time: This is a special-order item. Lead time is 4-6 weeks after purchasing.

Description:

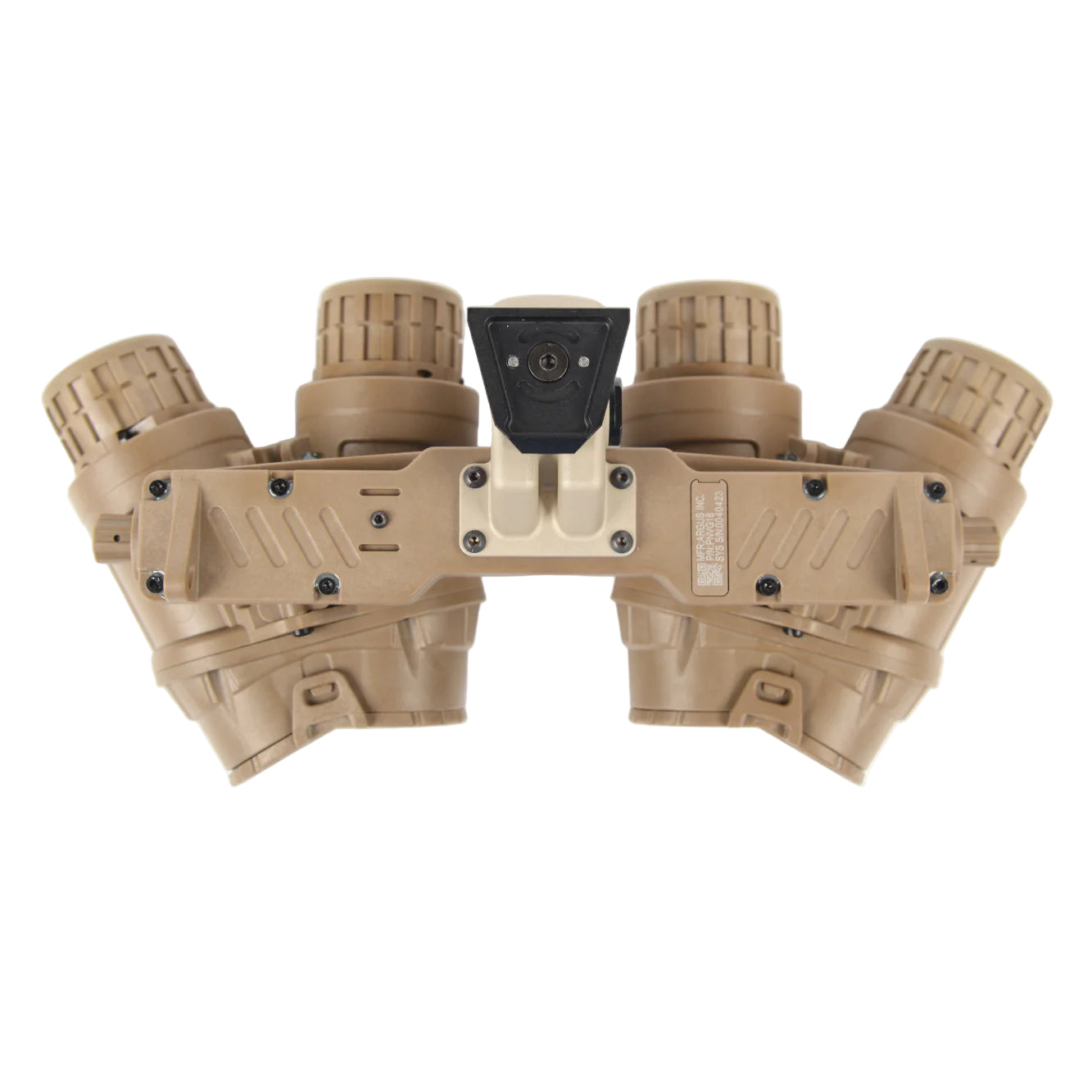

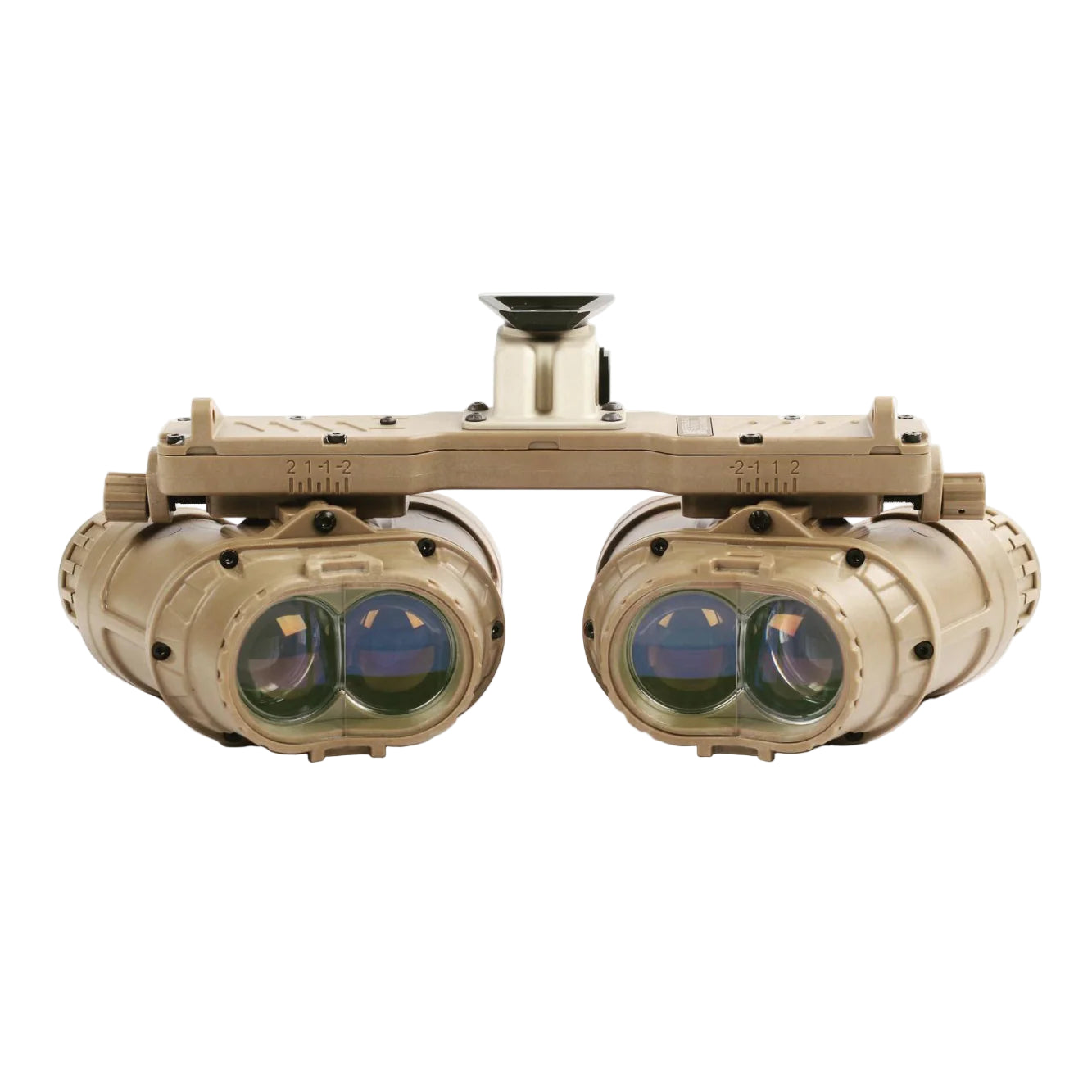

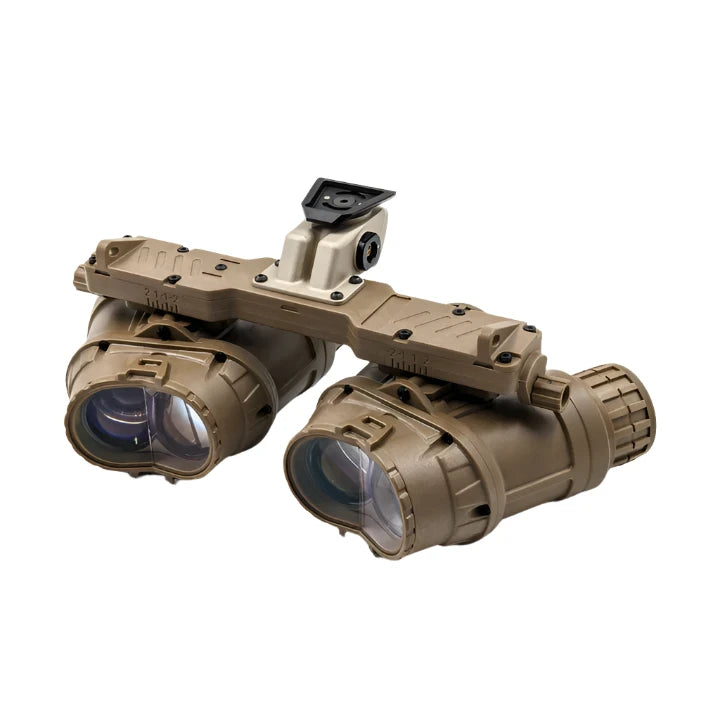

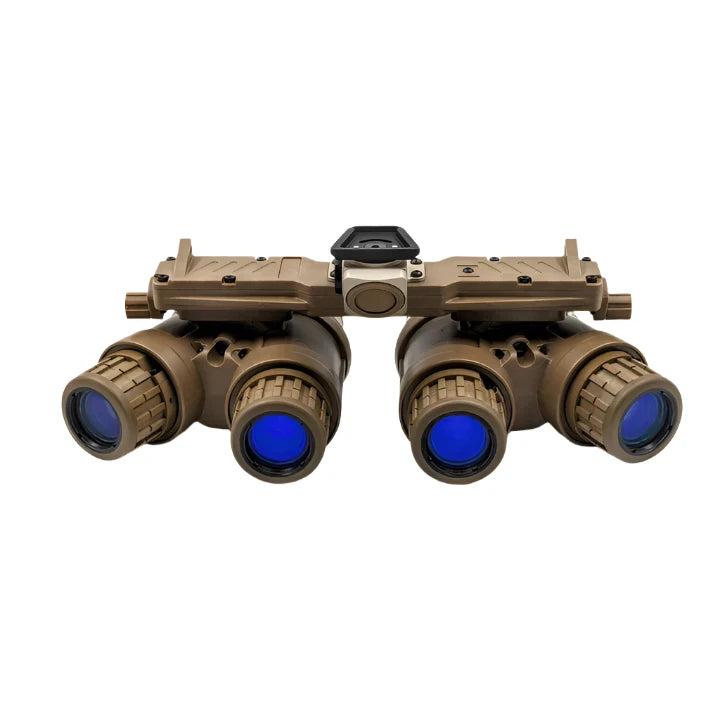

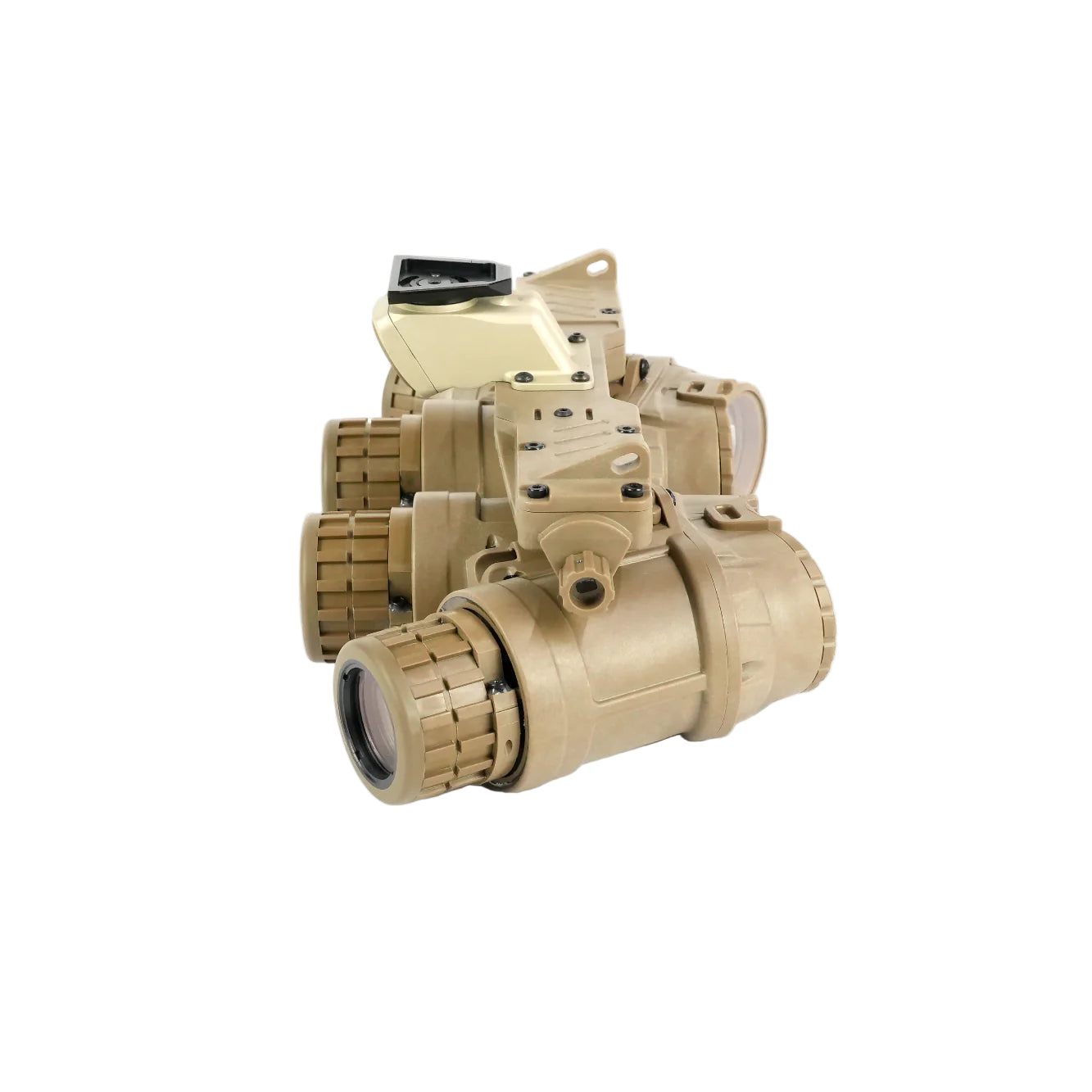

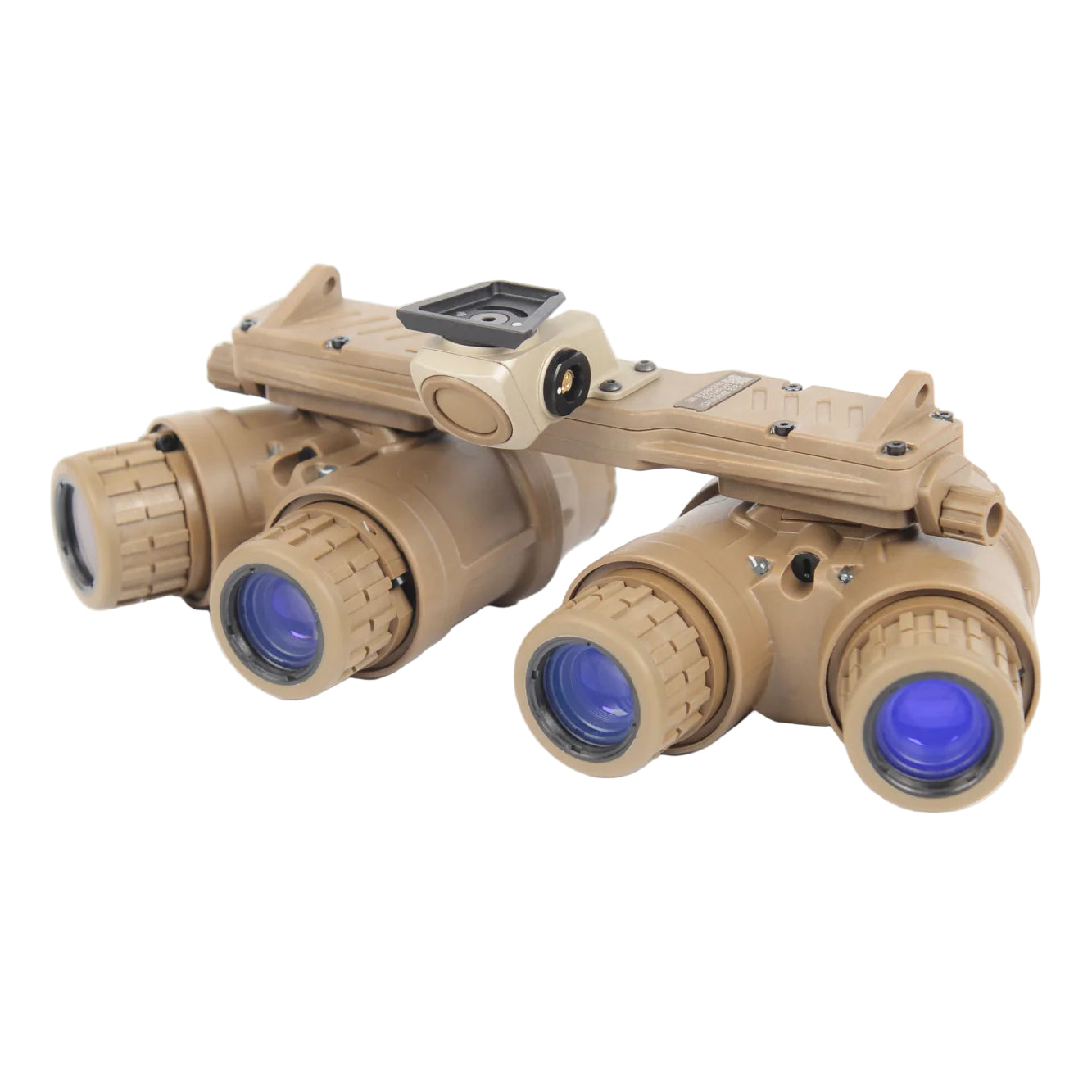

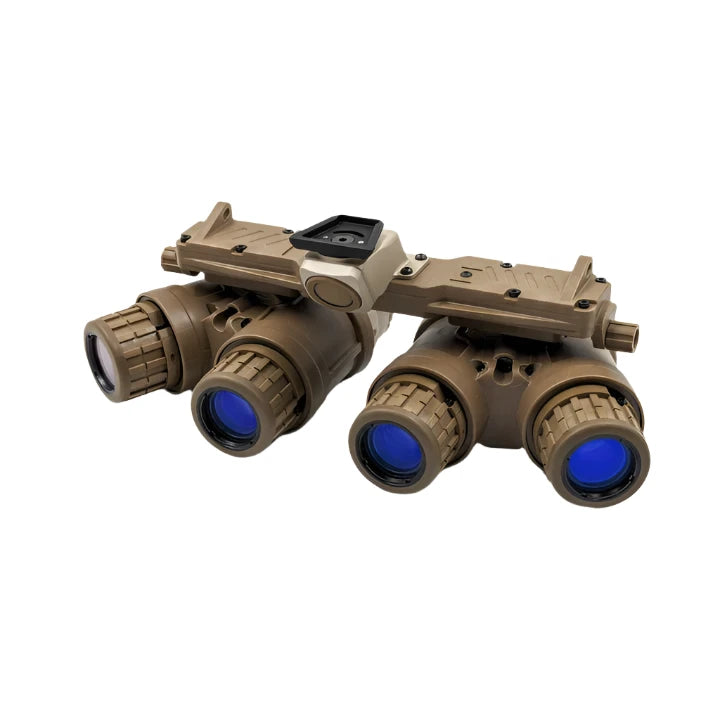

The Argus Panoramic Night Vision Goggle (APNVG) is a panoramic goggle system that increases a user’s field of view from a typical 40 degree monocular or binocular system up to 100 degrees. The APNVG uses four image intensifier tubes in order to provide the increased field of view without decreasing system resolution or compromising collimation.

As the two centre tubes are parallel and point forward, the centre tubes will provide depth perception and increased perceived resolution and acuity through by providing stereoscopic vision. The outboard pointing tubes on each side will provide additional peripheral vision to the side that they are on, thus the user will perceive three circular fields of view.

These fully assembled units boast Generation 2+ North Night Vision Technology (NNVT) Intensifier Tubes with impressive tube performance, our tube options range from 1400+ to 2000-2200+ Figure Of Merit (FOM). Additionally, all devices undergo Dry Nitrogen Purging and Optical Collimation at the Factory.

Features:

• 100 Degree Field of View for increased user awareness-High resolution lens system
• Fully collimating lens system
• Waterproof – 2 meters for 30 minutes
• Warranted for 1 year against manufacturing defects – physical damage and improper assembly/disassembly are not covered

Specifications:

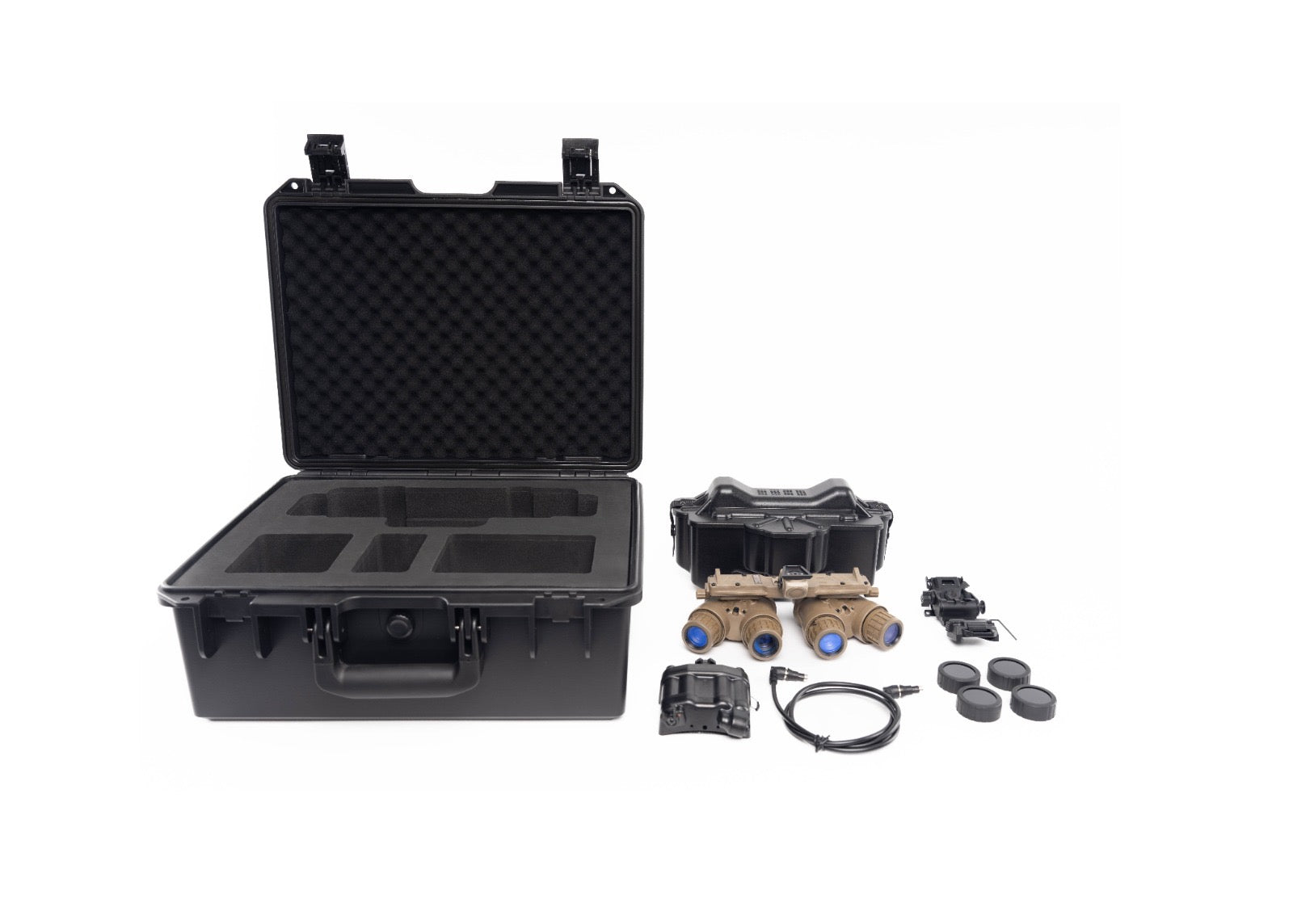

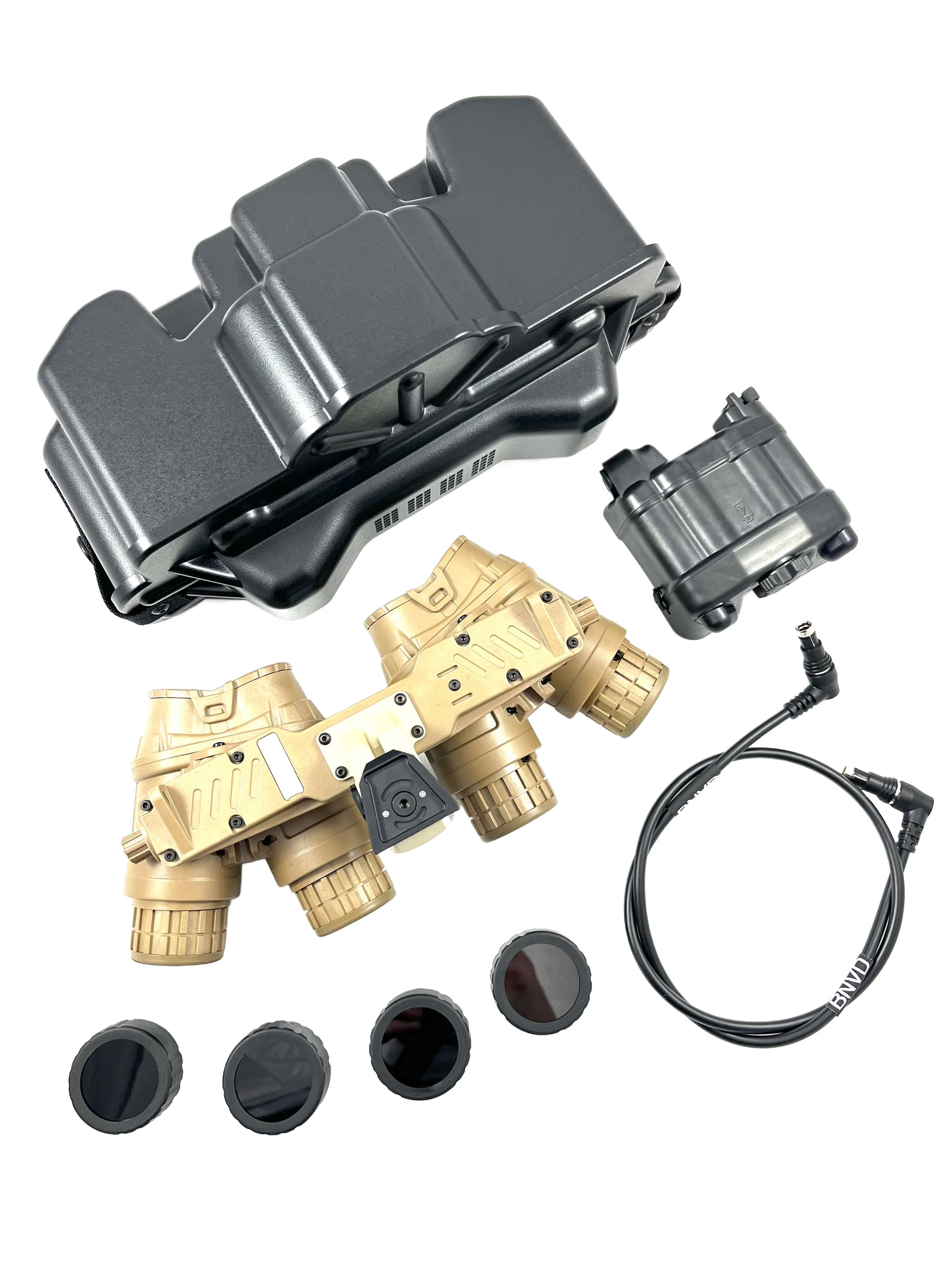

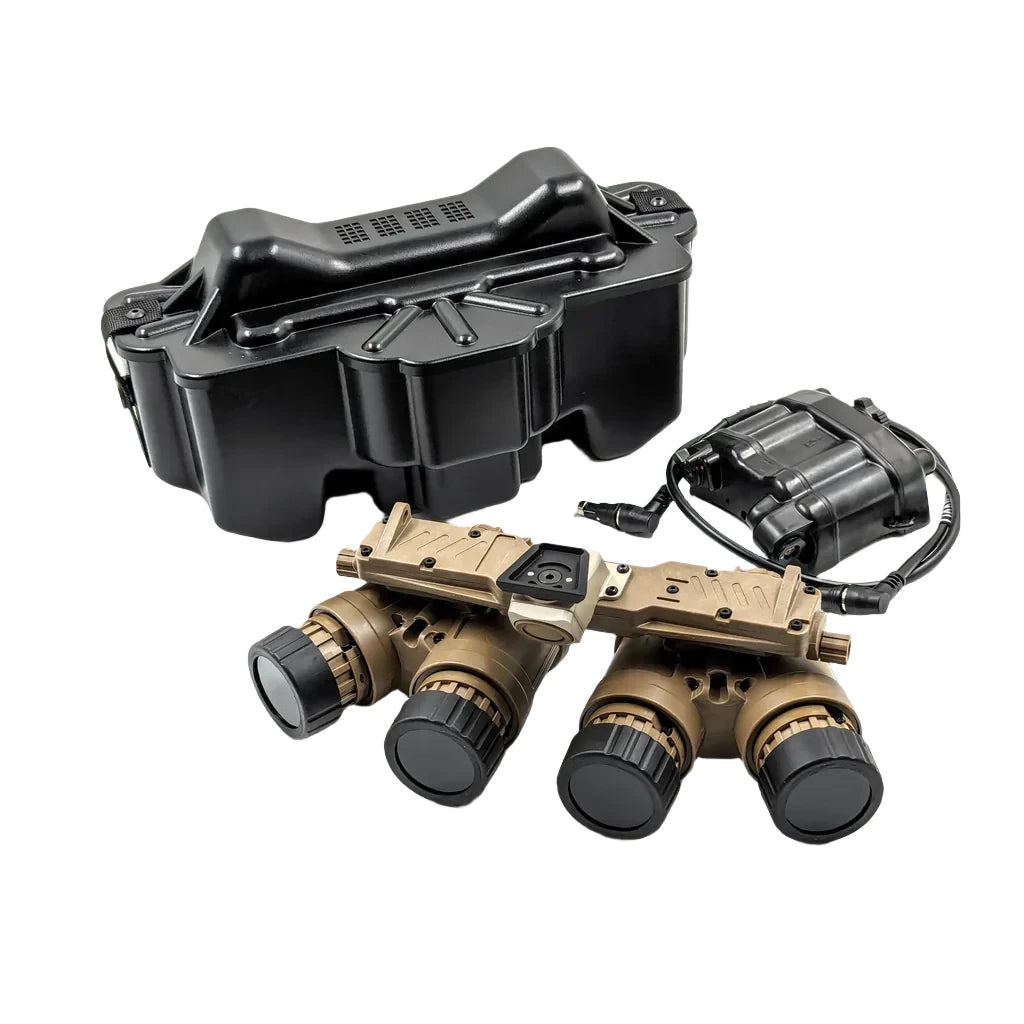

Included Accessories:

• Argus Panoramic Night Vision Goggle (APNVG) Unit
• Plastic Carry Case

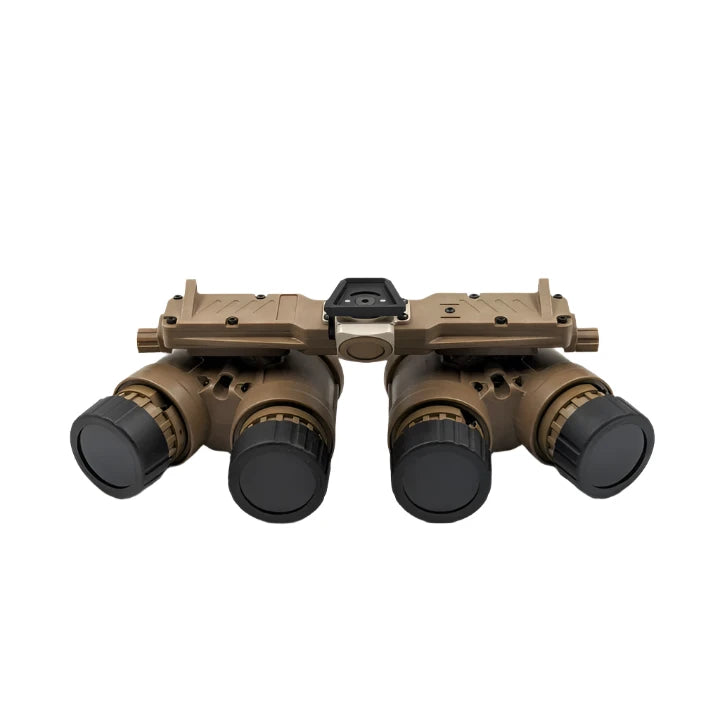

• 4x filtered objective lens caps
• Argus USBP (Universal Strobe Battery Pack) & Cable
• Argus A4 Light Weight Night Vision Mount
• Tube Spec Sheets
• Velcro Strip for USBP Battery Pack

North Night Vision Technology (NNVT) - Intensifier Tube Specifications:

IMPORTANT: The below specifications are the average performance charts listed by the manufacturer and do not accurately reflect the exact performance levels of individual tubes, slight variations of specs will present. All intensifiers will include its individual spec sheet.

Handpicking: If you require specific Intensifier Tube specifications, please add them into your order notes at checkout and we will handpick tubes that are as close to your requirements as possible.

NVT-7 (Class A):

• FOM:  2000 (Min) - 2200+
• SNR: 28
• Resolution: 64-68 lp/mm
• High Light Res: 54 lp/mm
• Gain: 10000 - 20000 cd/m²/lx
• Phosphor: P43 (GP)/ P45 (WP)
• Power Supply: Auto-gating + Variable Gain
• Voltage: 2.2-3.4v
• Weight: 80 grams

NVT-5 (Class B):

• FOM: 1600 (Min) -1800 (Max)
• SNR: 25
• Resolution: 64 lp/mm
• High Light Res: 54 lp/mm
• Gain: 8000 - 12000 cd/m²/lx
• Phosphor: P43 (GP)/ P45 (WP)
• Power Supply: Auto-gating + Variable Gain
• Voltage: 2.2-3.4v
• Weight: 80 grams

NVT-4 (Class C):

• FOM: 1400 (Min) -1600 (Max)
• SNR: 23
• Resolution: 60 lp/mm
• High Light Res: -  lp/mm
• Gain: 8000 - 12000 cd/m²/lx
• Phosphor: P43 (GP)/ P45 (WP)
• Power Supply: Fixed Gain
• Voltage: 2.2-3.4v
• Weight: 80 grams
