AB Night Vision MGA Night Vision Binocular Housing

RE-EXPORT CONTROL NOTICE – EAR99: This item is restricted for re-export outside of Australia by the US DEPARTMENT OF STATE DIRECTORATE OF DEFENSE CONTROLS under EXPORT ADMINISTRATION REGULATIONS 99 (EAR99).  This item may not be resold, handled, diverted, transferred, made available to, or otherwise disposed of outside the United States and Australia, or to any foreign national within the United States and Australia, without prior written approval from the U.S. Department of State.

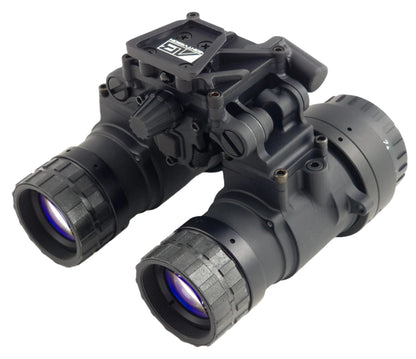

NOTE: Housing Only - No Optics Or Intensifier Tubes Included (Product photo is for demonstration purposes only and does not represent all included contents.)

Lead Time: This is a special-order item. Lead time is 4-6 weeks after purchasing.

Description:

The AB Night Vision MGA binocular housing is a durable and feature-rich night vision binocular that incorporates the proven features of the RNVG-A housing.

Made from 7075 alloy aluminum, this housing is designed to withstand real-world challenges and has surpassed military drop test standards.

It boasts a rotary switch for power and manual gain adjustment, with a pushbutton switch to activate the IR illuminator. Viewers can easily adjust the Interpupillary Distance between 47mm and 80mm, and the optical pods can be rotated up and out of the way for natural sight or folded back flat against a helmet when not in use.

The force required to swing the pods can be adjusted by the user with a coin. Additionally, assembly of the MGA does not require removal or twisting of flex cables, preserving the image tube's warranty.

The binocular comes in both Flat Black and Flat Dark Earth finishes for durability and a non-reflective matte finish.

Key Features:

• 7075 Aluminum constructions
• Manual Gain compatible with MX11769 Format Intensifier Tubes
• Articulating pods
• Individual pod shut off
• Onboard IR illuminator
• Approximately 30 hours of battery life on a CR123 battery


Kit Includes:

• AB Night Vision MGA Night Vision Binocular Housing
• Hard Carry Case


Specifications:

• POWER SOURCE: (1) CR123 size battery
• FOCUS RANGE: 9.8” to infinity
• OPERATION TIME:  Approximately 30 hours with onboard CR123
• MAGNIFICATION: (1X) ONE POWER
• FIELD OF VIEW: 40 Degrees with std Mil-spec optics
• INTERPUPILLARY ADJUSTMENT: 47mm to over 80mm
• DIOPTER ADJUSTMENT: -6 TO +2
• GAIN: Manually adjustable
• WEIGHT: 210g housing, 580g (20.45oz) with std Mil-spec optics and L3 tubes, no battery
• 492g (17.35oz) with RPO 3.0 lenses
• DIMENSIONS: 4.14” X 4.2” X 3.5”
• IR ILLUMINATOR: Built in
• WATER RESISTANCE: Submersible to 66ft
• IR LED & LOW BATTERY INDICATORS: Yes
• INTENSIFIER TUBES: Compatible with MX-11769 style
• OPTICS: Compatible with PVS-14 style eyepiece and objective
• WARRANTY: Lifetime on housing parts and workmanship per policy.
