(USED) PVS14 Night Vision Monocular Package, Photonis 4G 2100+FOM - White Phosphor (P45)

$7,490.00 AUD
By Nocturnal Optics Australia

Description:

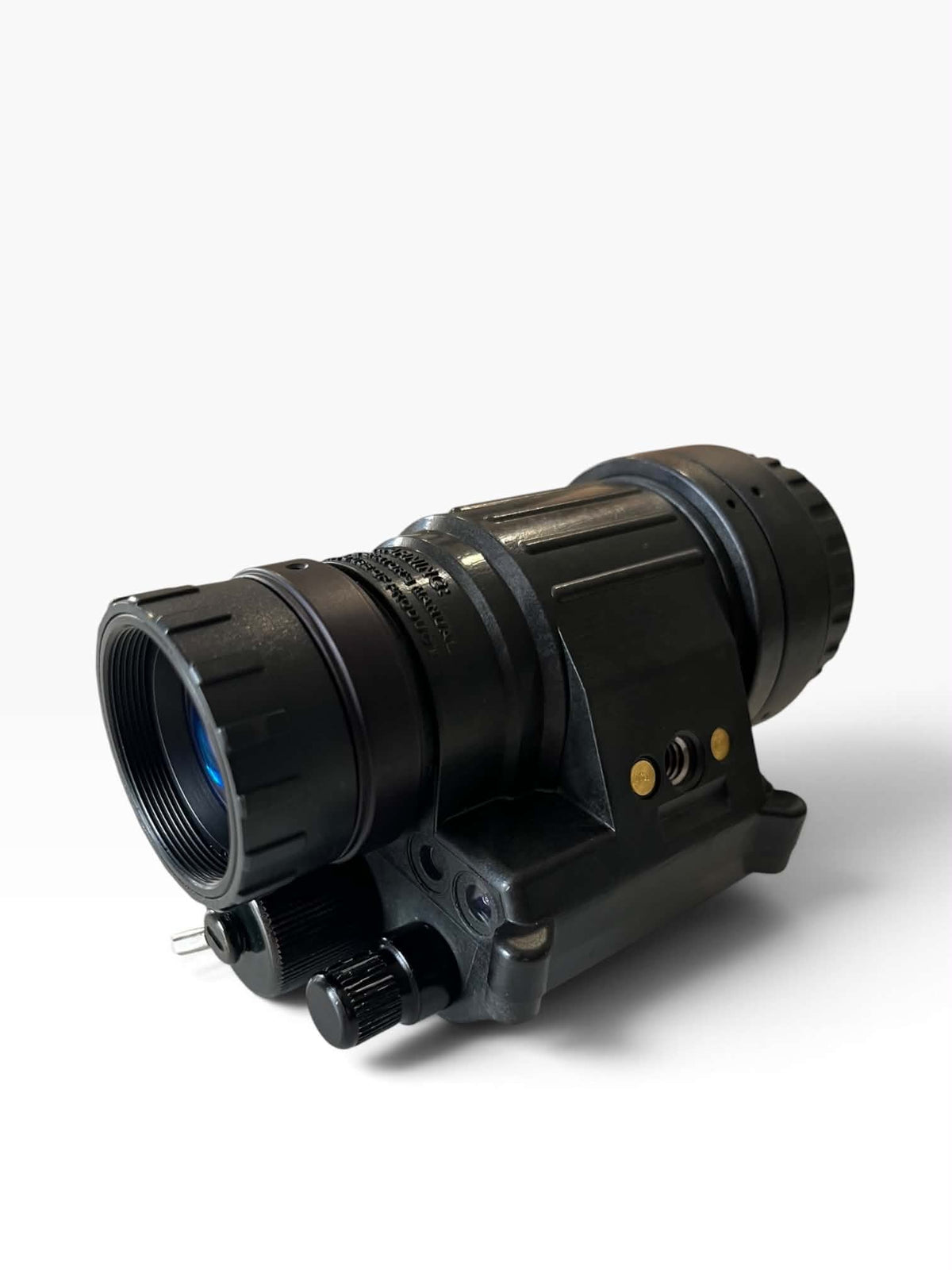

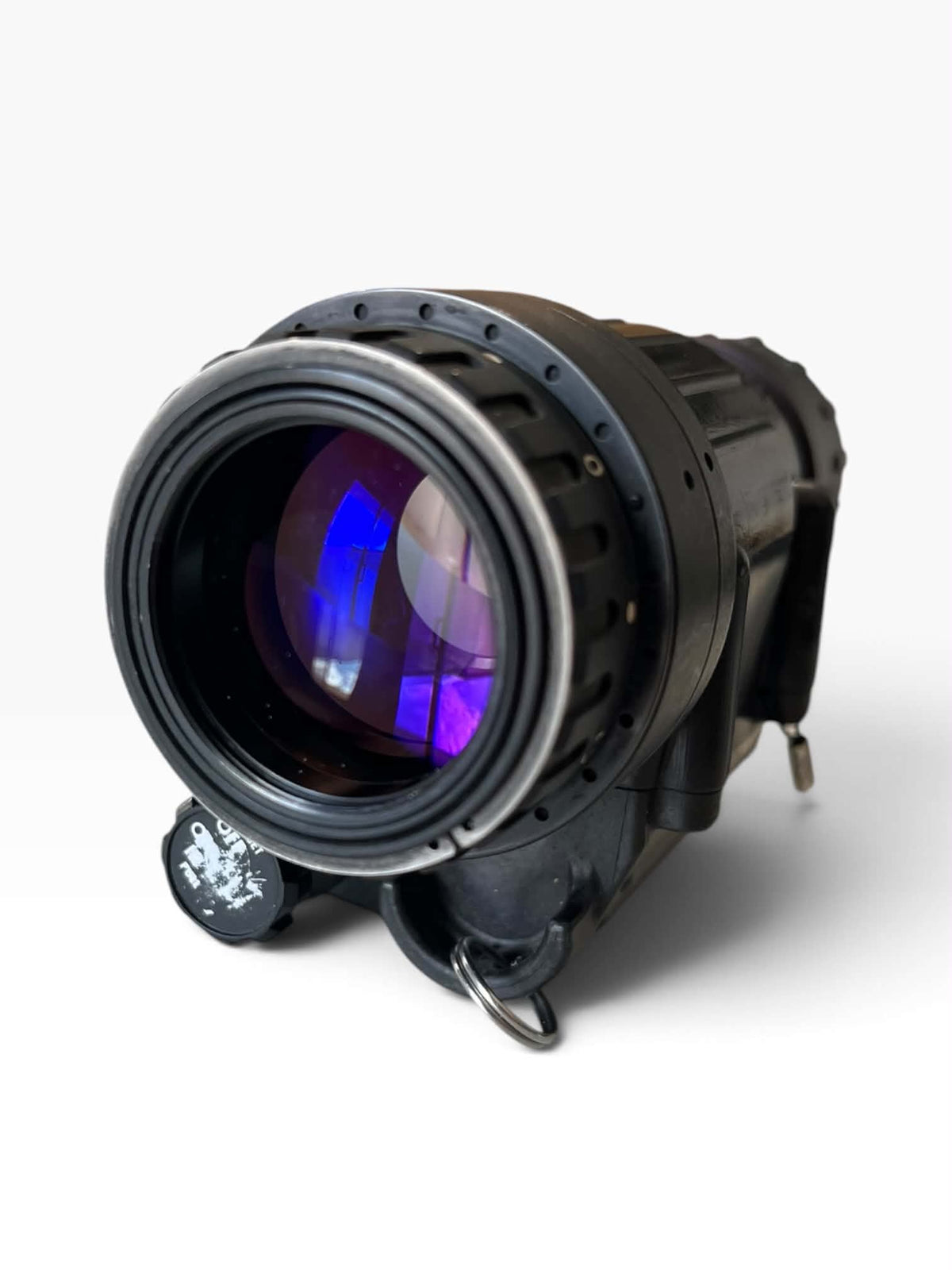

The PVS-14 Night Vision Monocular is a lightweight and versatile monocular night vision system suitable for handheld and head-mounted observation. This particular system is a pre-owned trade-in unit recently inspected and serviced by Nocturnal Optics Australia prior to resale.

The system is fitted with a Photonis 4G 2100+ FOM Autogated White Phosphor image intensifier tube, providing excellent resolution, contrast and overall image quality across a broad range of lighting conditions. This unit is sold as-is without manufacturer warranty on the Photonis 4G image intensifier tube. All performance metrics and condition assessments reflect the pre-owned, inspected state at time of sale.

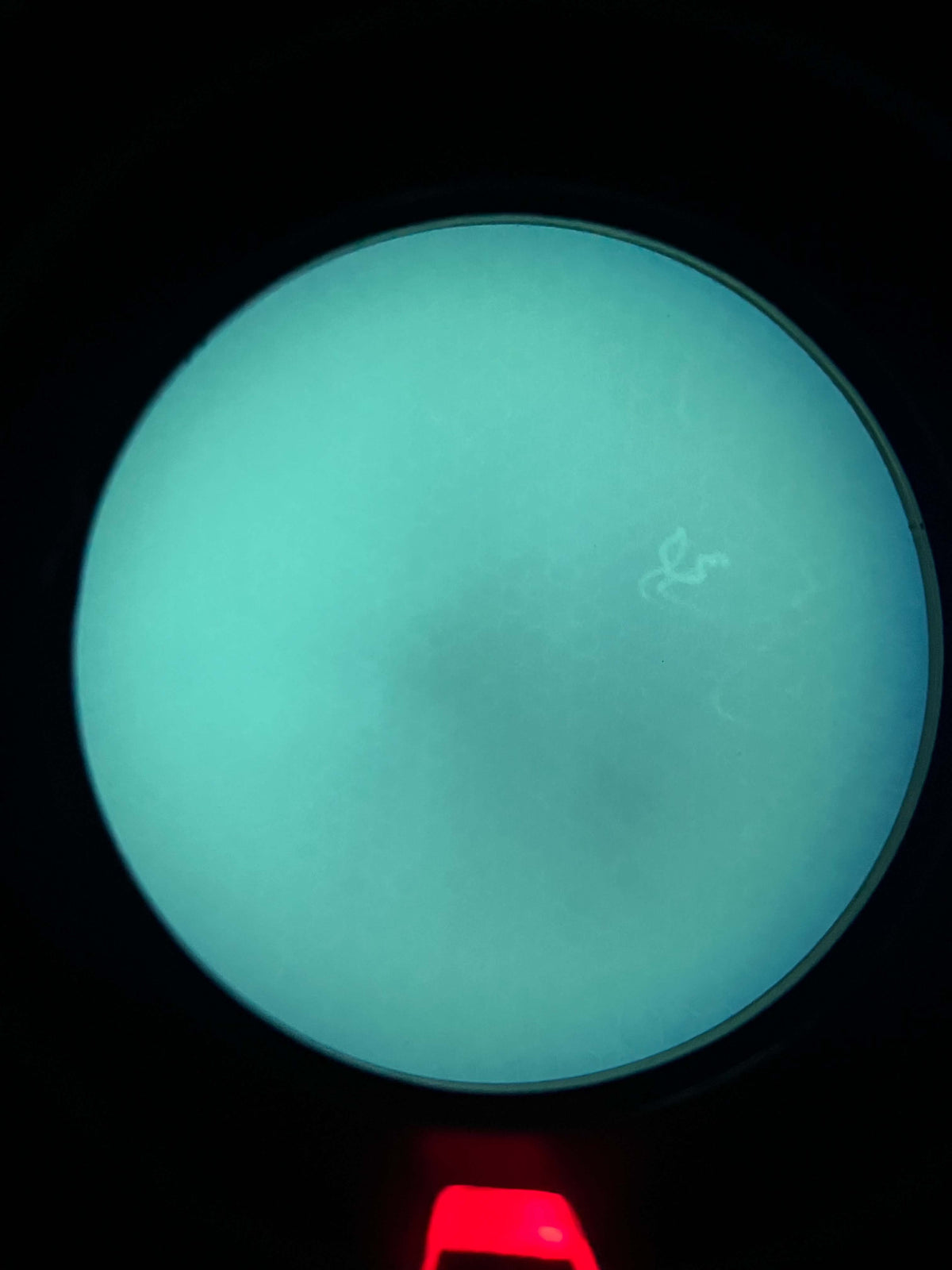

KNOWN COSMETIC DEFECT: Photocathode burn-in/tracing artefact within the outer Zone 2 region at approximately the 3–4 o'clock position.

Tube Specifications:

Specification Photonis 4G
Type XX1440D
Serial Number 193694
Date 06 December 2019
Phosphor P45 White Phosphor
FOM 2189
Signal-to-Noise Ratio (SNR) 30.0
Resolution 73 lp/mm
Photocathode Sensitivity 1689 µA/lm
Gain 12,880 cd/m²/lx
Equivalent Background Input (EBI) 0.18 µlx
Input Current 24.8 mA
Image Alignment 0.16 mm
Useful Cathode Diameter 17.7 mm
Burn-In OK
Image Quality OK
Remarks DRI G1 1720A

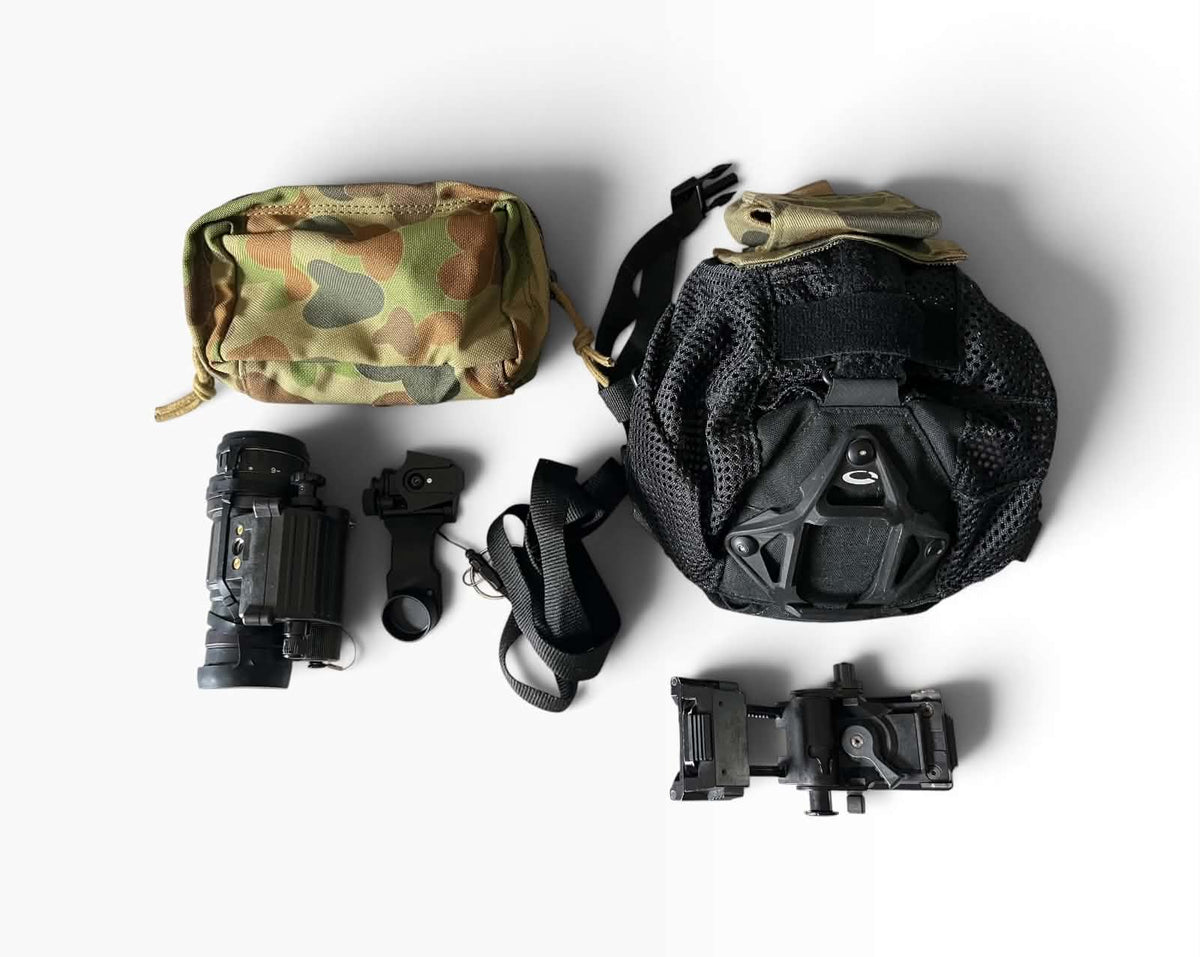

Included Package:

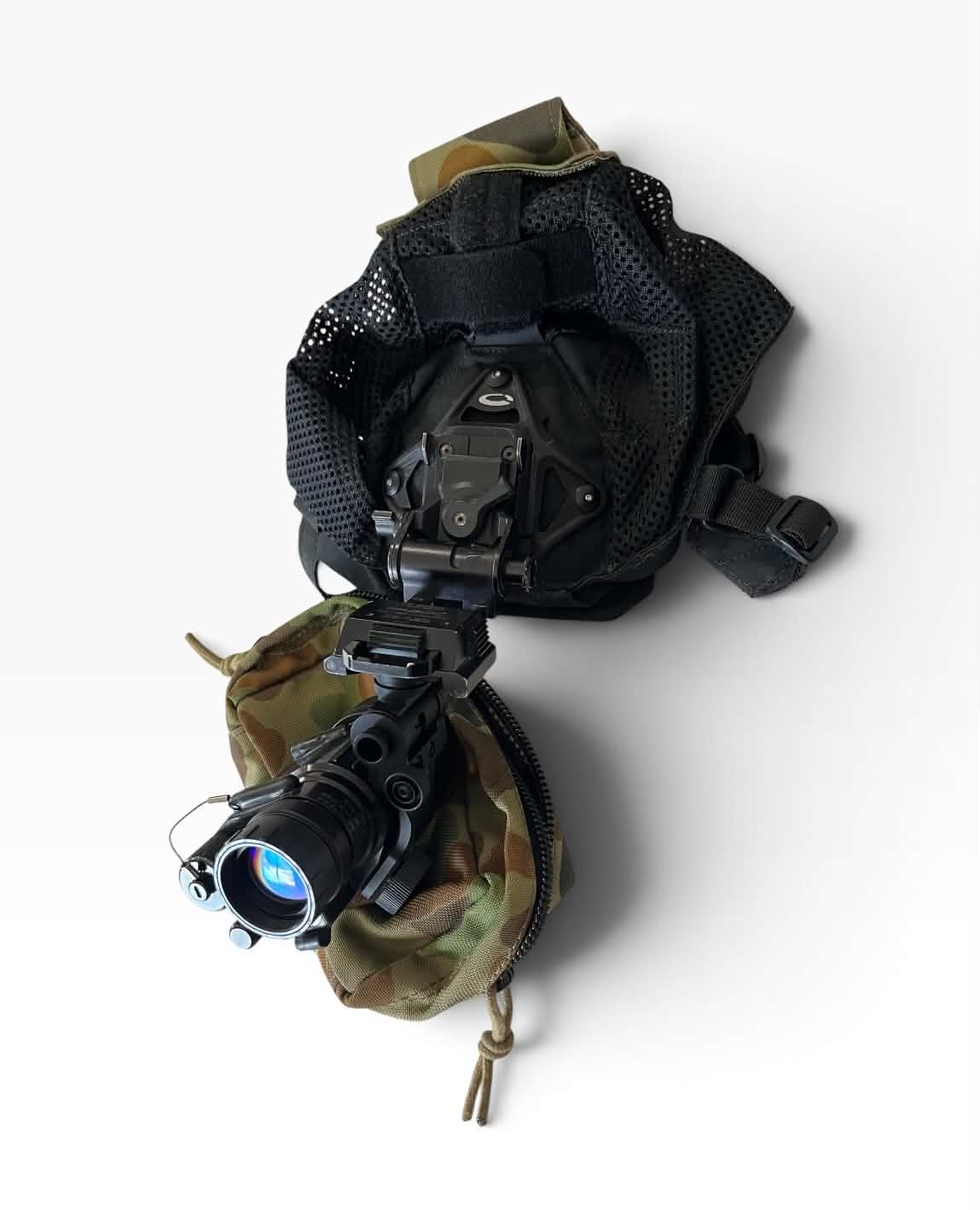

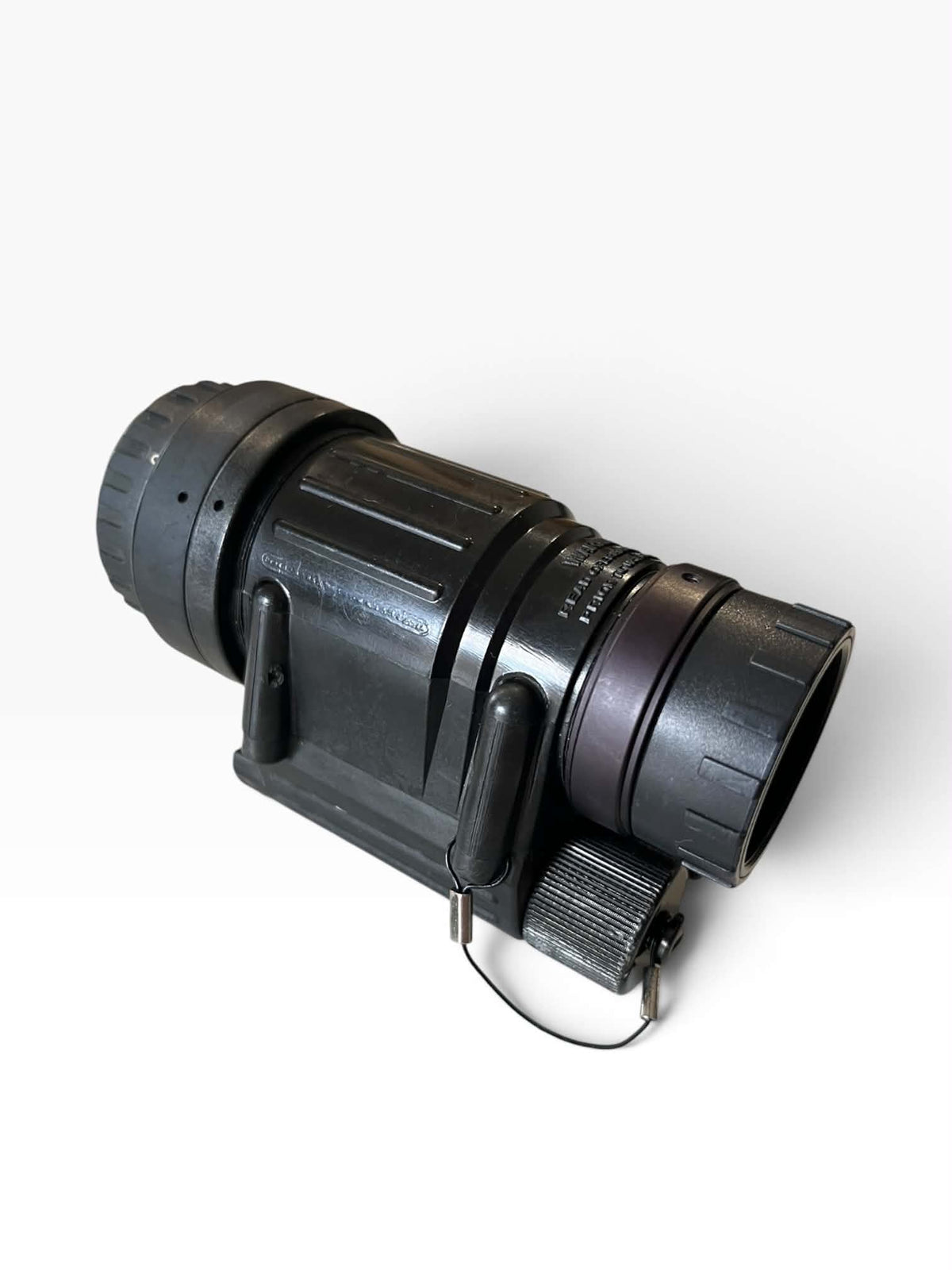

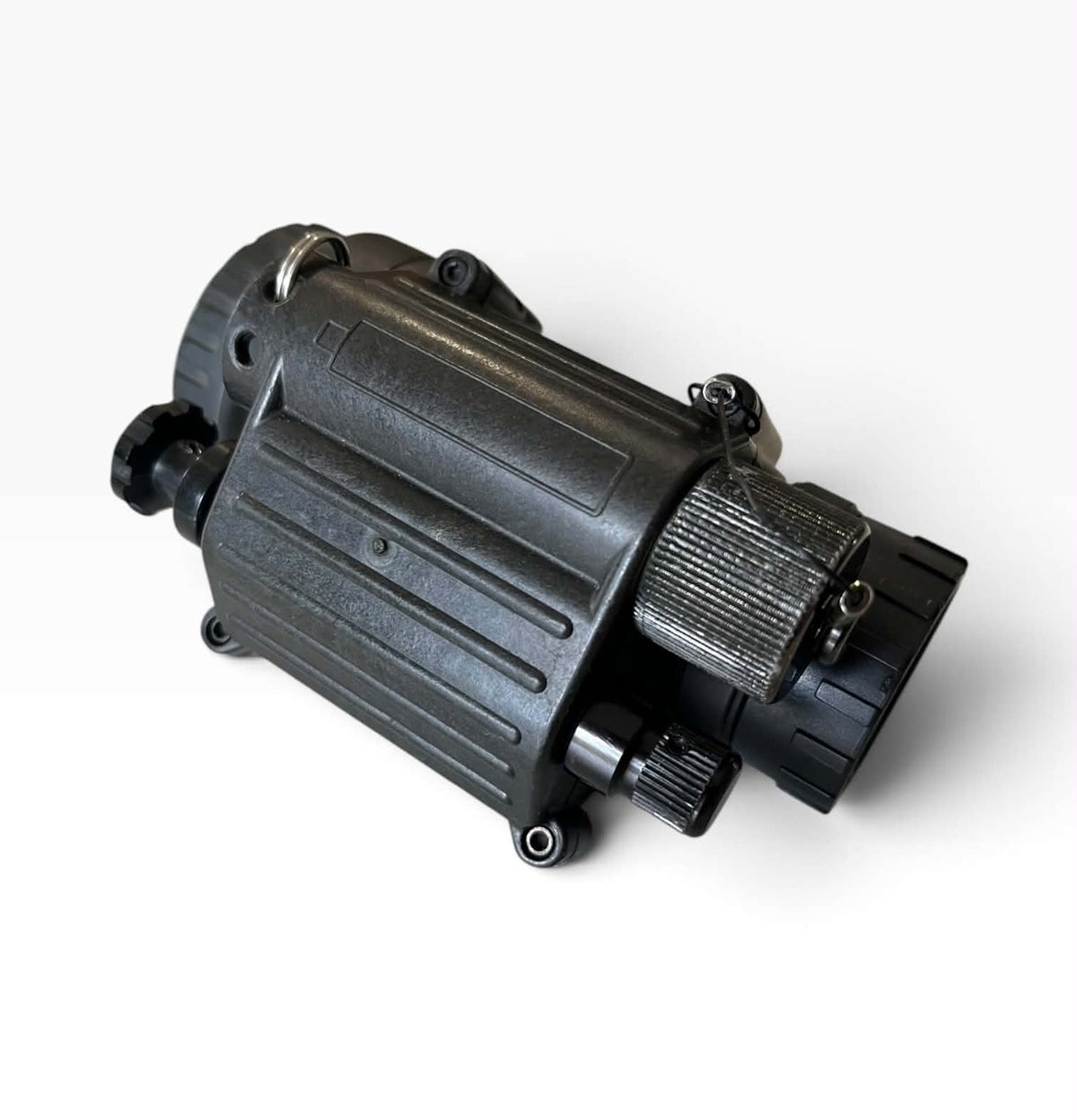

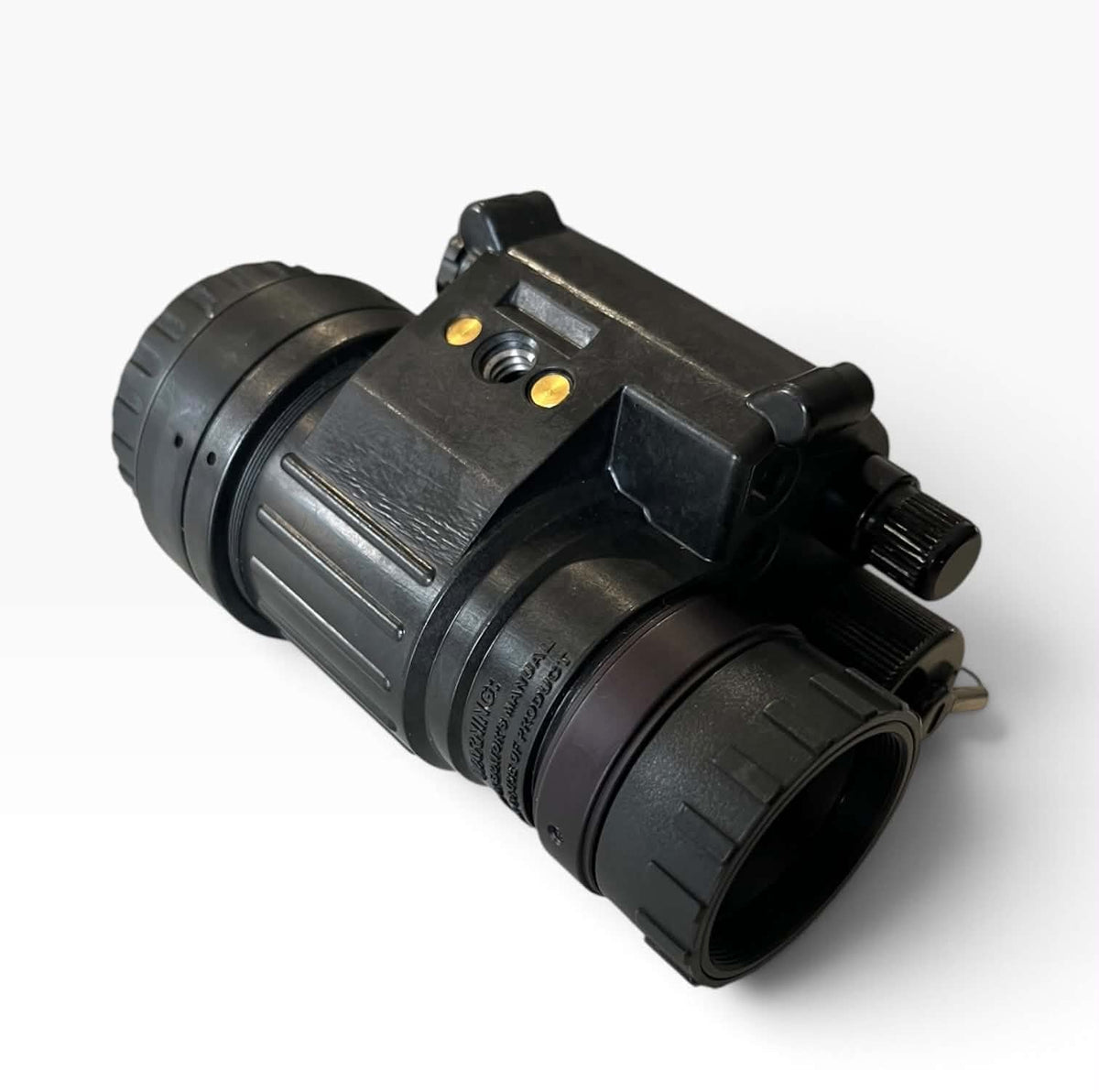

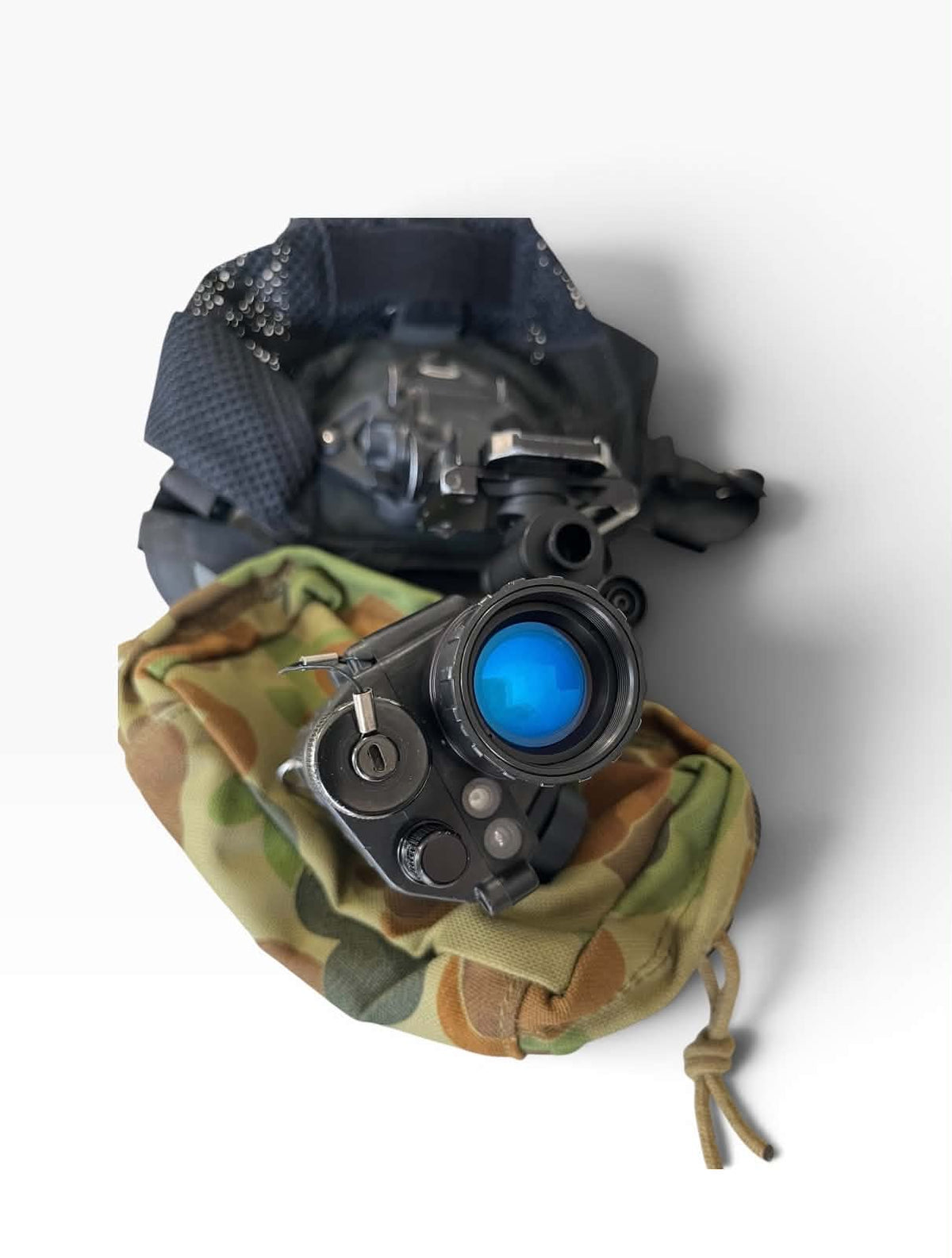

  • 1 × PVS-14 Night Vision Monocular, Photonis 4G 2100+ FOM - White Phosphor (P45)

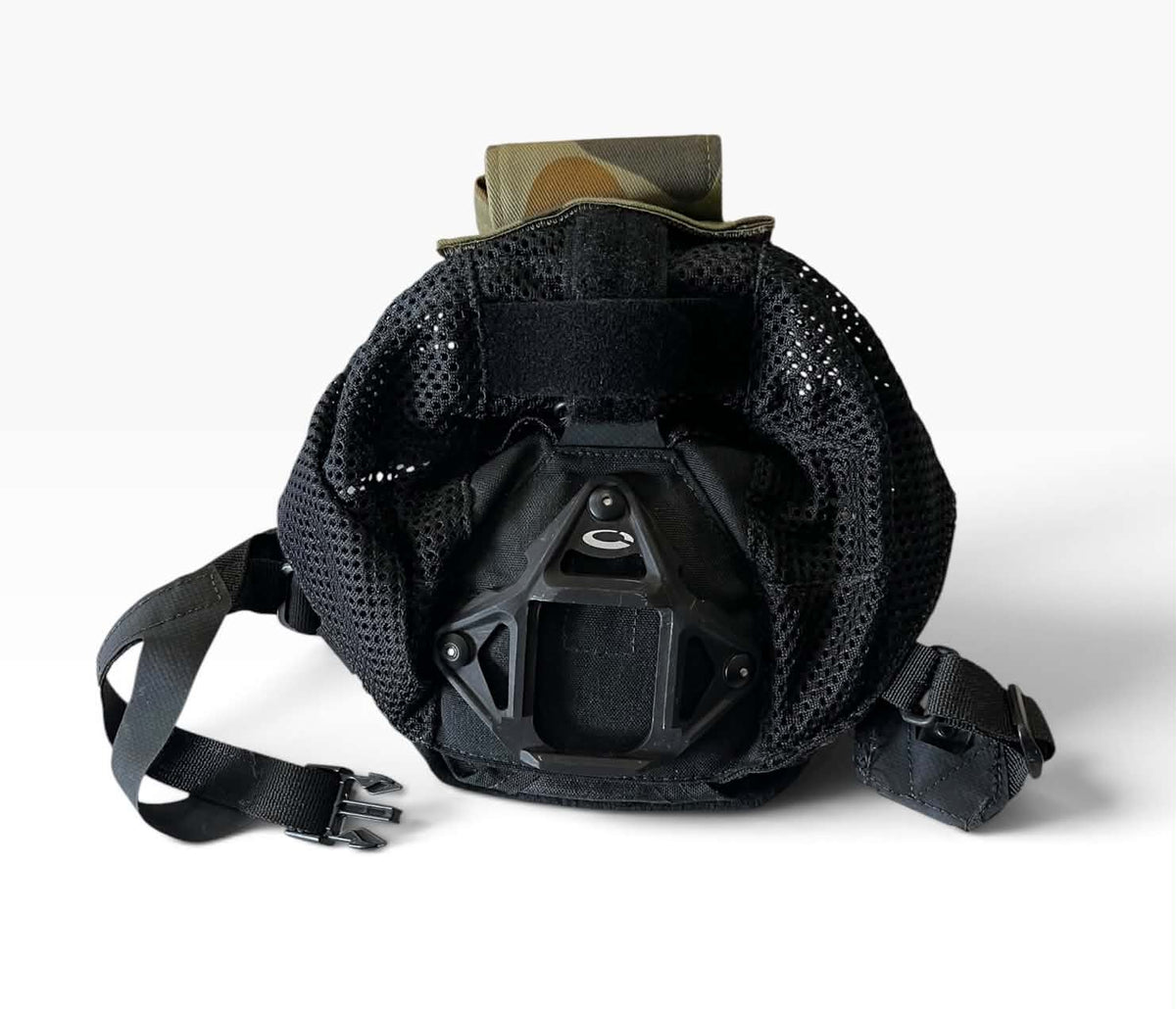

  • 1 × Crye Precision NightCap

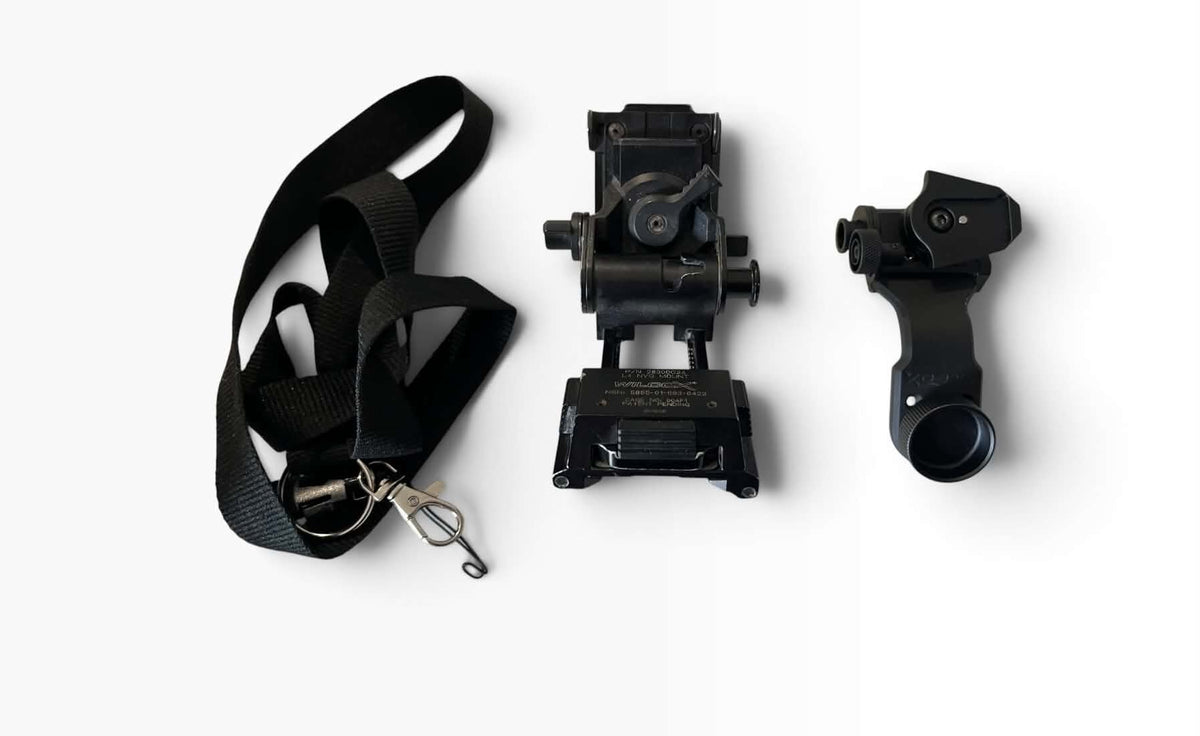

  • 1 × Wilcox L4 G24 Breakaway NVG Mount
  • 1 × Wilcox PVS-14 J-Arm
  • 1 × NVG Retention Lanyard
  • 1 × SOS Marine LAND 125 GP Pouch – DPCU

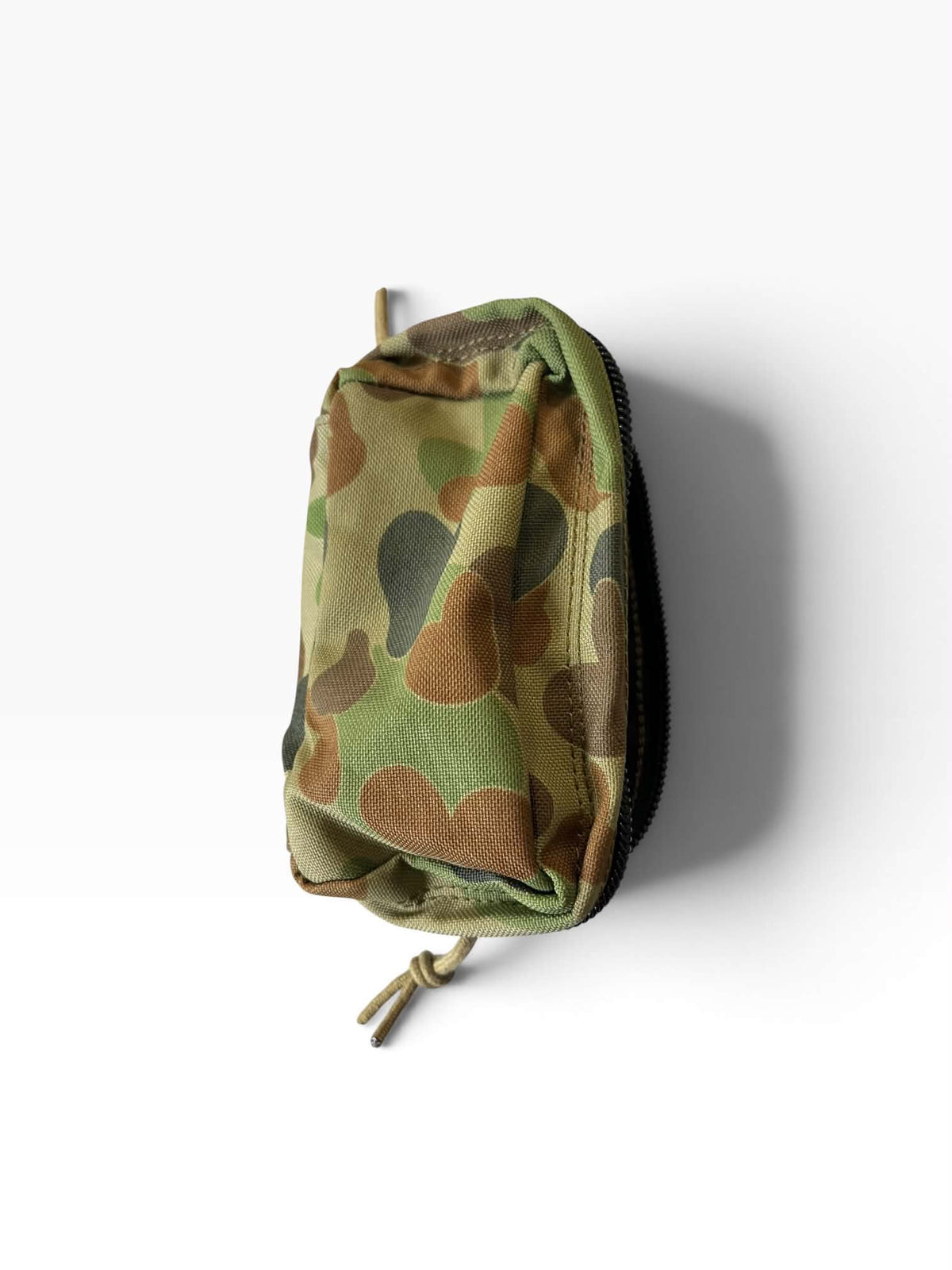

  • 1 × Platatac Battery/Counterweight Pouch – DPCU
  • 1 × Bikini Lens Cover
  • 1x Nocturnal Optics Australia Warranty Card
  • Photonis Intensifier Tube Specification Sheet

Specifications:

MANUAL GAIN: No
IR ILLUMINATOR: Built-in
IR INDICATOR: Yes
LOW BATTERY INDICATOR: Yes
POWER SOURCE: 1 × AA Battery
BATTERY LIFE: 50+ Hours
DIMENSIONS: 114 × 64 × 70 mm (4.5 × 2.5 × 2.75 in)

Optical Specifications:

MAGNIFICATION: 1×
FIELD OF VIEW: 40°
OBJECTIVE LENS: 27 mm f/1.2
DIOPTER ADJUSTMENT: −6 to +2
EYE RELIEF: 25 mm
FOCUS RANGE: 25 cm (9.8 in) to Infinity
