(USED) PVS14 Night Vision Monocular Package, Photonis 4G 2100+FOM - White Phosphor (P45)
Couldn't load pickup availability
Description:
The PVS-14 Night Vision Monocular is a lightweight and versatile monocular night vision system suitable for handheld and head-mounted observation. This particular system package is a pre-owned trade-in unit recently inspected and serviced by Nocturnal Optics Australia prior to resale.
The housing exhibits surface scratches, cosmetic marks and general wear and tear consistent with its age and prior service.
The system is fitted with a Photonis 4G 2100+ FOM Autogated White Phosphor image intensifier tube, providing excellent resolution, contrast and overall image quality across a broad range of lighting conditions. This unit is sold as-is without manufacturer warranty on the Photonis 4G image intensifier tube. All performance metrics and condition assessments reflect the pre-owned, inspected state at time of sale.
KNOWN COSMETIC DEFECT: Photocathode burn-in/tracing artefact within the outer Zone 2 region at approximately the 3–4 o'clock position.

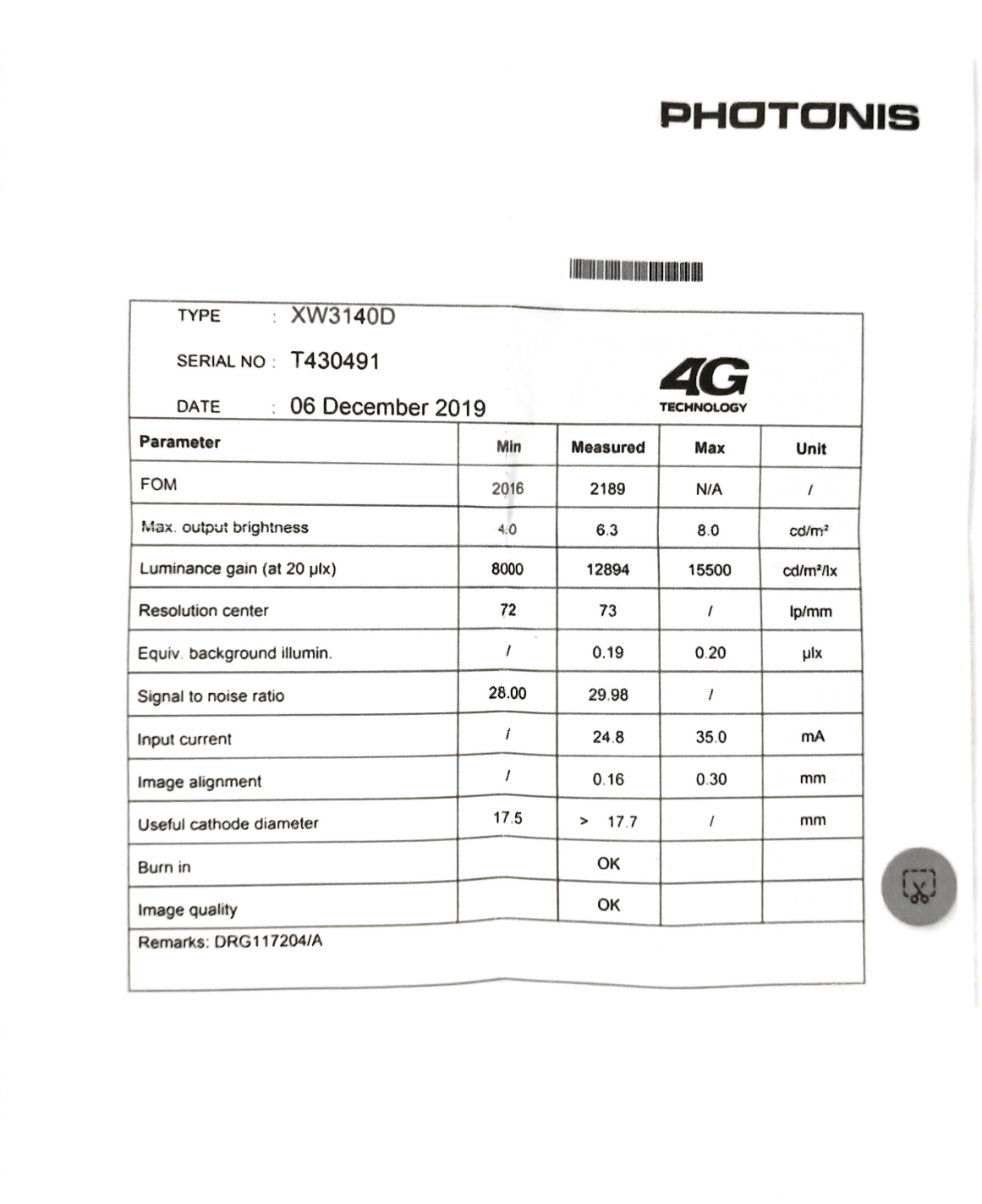

Tube SpecificationsL
| Specification | Photonis 4G |
|---|---|
| Type | XW3140D |
| Serial Number | T430491 |
| Date | 06 December 2019 |
| Technology | Photonis 4G |
| Phosphor | White Phosphor |
| FOM | 2189 |
| Signal-to-Noise Ratio (SNR) | 29.98 |
| Resolution (Center) | 73 lp/mm |
| Luminance Gain @ 20 µlx | 12,894 cd/m²/lx |
| Equivalent Background Illumination (EBI) | 0.19 µlx |
| Maximum Output Brightness | 6.3 cd/m² |
| Input Current | 24.8 mA |
| Image Alignment | 0.16 mm |
| Useful Cathode Diameter | >17.7 mm |
| Burn-In | OK* |
| Image Quality | OK* |
| Remarks | DRG117204/A |
Included Package:
- 1 × PVS-14 Night Vision Monocular, Photonis 4G 2100+ FOM - White Phosphor (P45)
- 1 × Crye Precision NightCap
- 1 × Wilcox L4 G24 Breakaway NVG Mount
- 1 × Wilcox PVS-14 J-Arm
- 1 × Retention Lanyard
- 1 × SOS Marine LAND 125 GP Pouch – DPCU
- 1 × Platatac Battery/Counterweight Pouch – DPCU
- 1 × Bikini Lens Cover
- 1x Nocturnal Optics Australia Warranty Card
- Photonis Intensifier Tube Specification Sheet
Specifications:
MANUAL GAIN: No
IR ILLUMINATOR: Built-in
IR INDICATOR: Yes
LOW BATTERY INDICATOR: Yes
POWER SOURCE: 1 × AA Battery
BATTERY LIFE: 50+ Hours
DIMENSIONS: 114 × 64 × 70 mm (4.5 × 2.5 × 2.75 in)
Optical Specifications:
MAGNIFICATION: 1×
FIELD OF VIEW: 40°
OBJECTIVE LENS: 27 mm f/1.2
DIOPTER ADJUSTMENT: −6 to +2
EYE RELIEF: 25 mm
FOCUS RANGE: 25 cm (9.8 in) to Infinity
